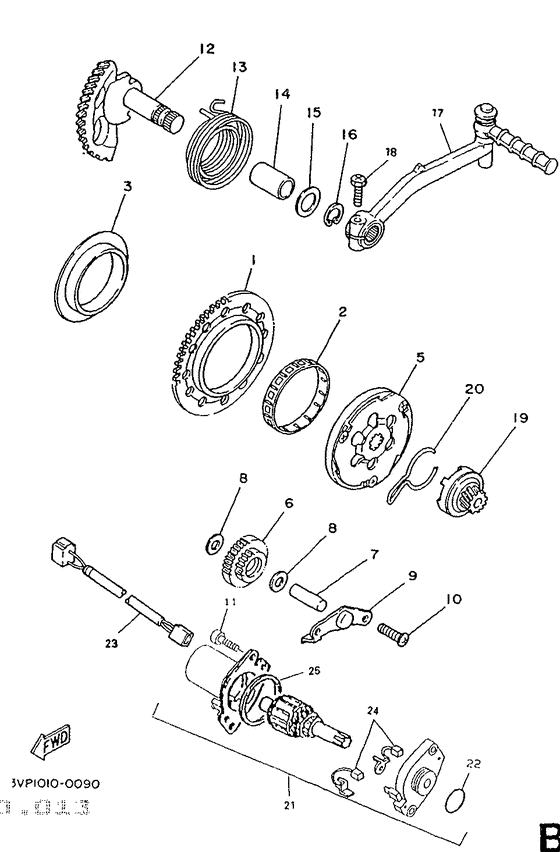

Starter Diagram Yamaha YE50 Zest 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4LN3
- Sales region
- Switzerland (999)
- Engine Capacity
- 50
- Model
- YE50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-15513-00-00 Gear 1 (71T) |
3AA-15513-00-00 |
from US $33.15 |
||
|
02
|
02
93310-157R1-00
Bearing
|
93310-157R1-00 |
— | ||
|
03
|
03
3KJ-15528-00-00 Boss, Gear |
3KJ-15528-00-00 |
from US $14.17 |
||
|
05
|
05
3VL-15570-00-00 Starter Clutch Assy |
3VL-15570-00-00 |
from US $73.48 |
||
|
06
|
06
3AA-15650-00-00 Idle Gear Assembly (65T) |
3AA-15650-00-00 |
from US $39.44 |
||
|
07
|
07
3VL-E5659-00-00 Shaft |
3VL-E5659-00-00 |
from US $6.89 |
||
| replacement | |||||
|
07
|
07
3VL-E5659-10-00 Shaft |
3VL-E5659-10-00 |
from US $2.99 |
||
|
08
|
08
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.70 |
||
|
09
|
09
4CU-E5532-00-00
Plate, Idle Gear
|
4CU-E5532-00-00 |
— | ||
|
10
|
10
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
11
|
11
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
12
|
12
3KJ-15601-00-00 Kick Shaft Assembly |
3KJ-15601-00-00 |
from US $67.59 |
||
|
13
|
13
905-08326-09-00 Spring, Torsion (32N) |
905-08326-09-00 |
from US $8.08 |
||
|
14
|
14
90380-15083-00 Bush, Solid |
90380-15083-00 |
from US $1.62 |
||
| replacement | |||||
|
14
|
14
90380-15817-00 Bush, Solid |
90380-15817-00 |
from US $4.25 |
||
|
15
|
15
90201-155G5-00 Washer, Plate |
90201-155G5-00 |
from US $2.55 |
||
| replacement | |||||
|
15
|
15
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.55 |
||
|
16
|
16
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
17
|
17
4CU-E5620-00-00
Kick Crank Assy
|
4CU-E5620-00-00 |
— | ||
| replacement | |||||
|
17
|
17
4CU-E5620-01-00
Kick Crank Assy
|
4CU-E5620-01-00 |
— | ||
|
18
|
18
3VL-E5793-00-00 Screw, Hexagon |
3VL-E5793-00-00 |
US $5.29 |
||
| replacement | |||||
|
18
|
18
90153-06008-00 Screw, Hexagon |
90153-06008-00 |
from US $1.70 |
||
|
19
|
19
1NT-15630-01-00 Kick Pinion Assy |
1NT-15630-01-00 |
from US $71.57 |
||
|
20
|
20
4CU-E5673-00-00
Clip
|
4CU-E5673-00-00 |
— | ||
|
21
|
21
3YJ-81800-01-00 Starting Motor Assy |
3YJ-81800-01-00 |
US $291.52 |
||
| replacement | |||||
|
21
|
21
5BM-81800-01-00 Starting Motor Assy |
5BM-81800-01-00 |
from US $285.57 |
||
|
22
|
22
93210-23614-00 O-Ring |
93210-23614-00 |
from US $1.56 |
||
|
23
|
23
4CU-82541-00-00
Wire, Lead
|
4CU-82541-00-00 |
— | ||
| replacement | |||||
|
23
|
23
4CU-H2541-00-00
Wire, Lead
|
4CU-H2541-00-00 |
— | ||
|
24
|
24
1YU-81801-M0-00 Brush Set |
1YU-81801-M0-00 |
from US $28.48 |
||
|
25
|
25
53L-8181Y-M0-00 Gasket, Yoke |
53L-8181Y-M0-00 |
from US $3.78 |
||
