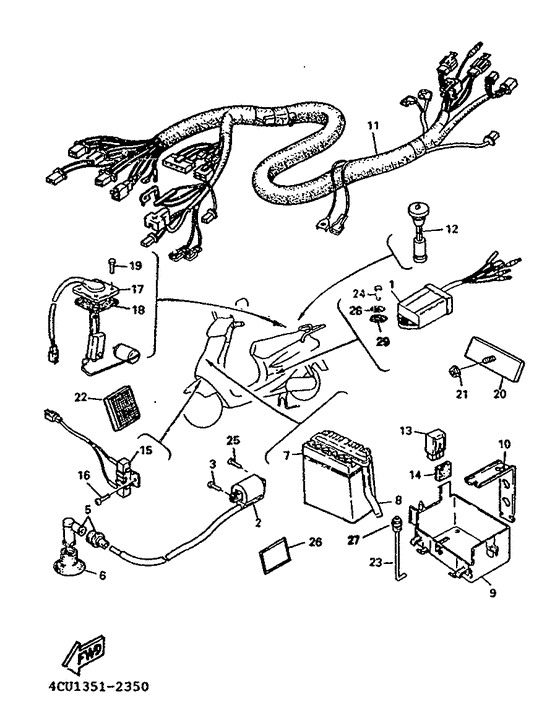

Electrical 2 Diagram Yamaha YE80 Zest 80
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4JC4
- Sales region
- France (999)
- Engine Capacity
- 80
- Model
- YE80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-85540-10-00
C.d.i. Unit Assy
|
3KJ-85540-10-00 |
— | ||
| replacement | |||||
|
01
|
01
3KJ-H5540-00-00
Cdi Unit Assy
|
3KJ-H5540-00-00 |
— | ||
|
02
|
02
4JP-82310-00-00 Ignition Coil Assy |
4JP-82310-00-00 |
from US $59.27 |
||
| replacements | |||||
|
02
|
02
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
02
|
02
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
02
|
02
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
03
|
03
97007-06016-00 Bolt |
97007-06016-00 |
US $1.21 |
||
| replacement | |||||
|
03
|
03
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
05
|
05
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
06
|
06
3KJ-82372-00-00 Seal, Plug Cap |
3KJ-82372-00-00 |
from US $4.11 |
||
|
07
|
07
4CU-H2110-00-00
Cb4Lb Gs Battery
|
4CU-H2110-00-00 |
— | ||
| replacements | |||||
|
07
|
07
CB4-LB000-00-00
12N5.5-3B GS BATTER
|
CB4-LB000-00-00 |
— | ||
|
07
|
07
9079R-24278-00
Battery (Yb4L-B)
|
9079R-24278-00 |
— | ||
|
07
|
07
YB4-LB000-00-00
Bat Yb4L-B Yu
|
YB4-LB000-00-00 |
— | ||
|
08
|
08
90445-08582-00 Hose (L1500) |
90445-08582-00 |
from US $10.91 |
||
| replacement | |||||
|
08
|
08
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
09
|
09
4CU-F177G-00-00
Box, Battery
|
4CU-F177G-00-00 |
— | ||
|
10
|
10
4CU-F172K-00-00
Bracket 1
|
4CU-F172K-00-00 |
— | ||
|
11
|
11
4JC-82590-00-00
Wire Harness Assy
|
4JC-82590-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4JC-H2590-00-00
Wire Harness Assy
|
4JC-H2590-00-00 |
— | ||
|
12
|
12
4CU-H5720-00-00
Oil Level Gauge Assy
|
4CU-H5720-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $35.70 |
||
|
14
|
14
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
15
|
15
2JA-85370-00-00 Resistor Assy |
2JA-85370-00-00 |
US $38.72 |
||
| replacement | |||||
|
15
|
15
3WG-H5370-10-00
Resistor Assy
|
3WG-H5370-10-00 |
— | ||
|
16
|
16
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
4CU-85752-00-00
Sender Unit Assy, Fuel
|
4CU-85752-00-00 |
— | ||
|
18
|
18
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $5.58 |
||
|
19
|
19
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
20
|
20
3NC-H5130-00-00 Rear Reflector Assy |
3NC-H5130-00-00 |
US $34.71 |
||
|
21
|
21
95706-05500-00 Nut, With Washer |
95706-05500-00 |
from US $1.18 |
||
| replacement | |||||
|
21
|
21
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
23
|
23
4CU-F8331-00-00
Bolt, Leg Shield
|
4CU-F8331-00-00 |
— | ||
|
24
|
24
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
24
|
24
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
25
|
25
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
27
|
27
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
28
|
28
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
29
|
29
27V-82151-00-00 Fuse |
27V-82151-00-00 |
from US $3.68 |
||
|
29
|
29
4JC-H2377-00-00
Label
|
4JC-H2377-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
