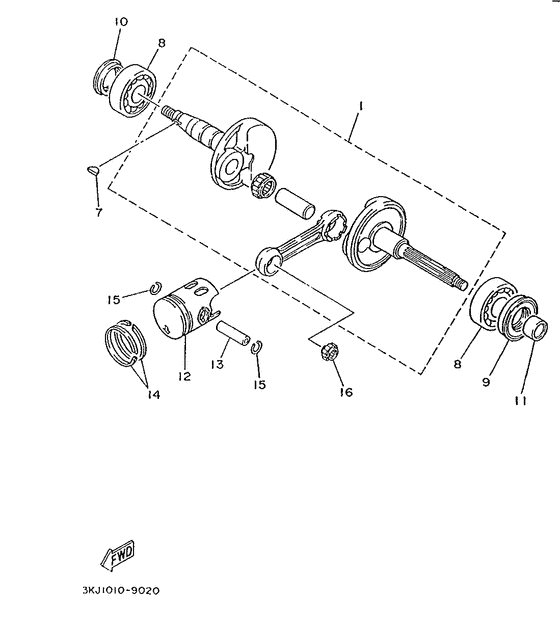

Crankshaft & Piston Diagram Yamaha YE80 Zest 80
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4MU3
- Sales region
- Germany (999)
- Engine Capacity
- 80
- Model
- YE80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3WF-11400-00-00 Crankshaft Assy |
3WF-11400-00-00 |
US $306.53 |
||
|
07
|
07
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
08
|
08
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
| replacement | |||||
|
08
|
08
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
09
|
09
93102-20371-00 Oil Seal(1Yu) |
93102-20371-00 |
from US $7.36 |
||
|
10
|
10
93101-20138-00 Oil Seal |
93101-20138-00 |
from US $5.06 |
||
|
11
|
11
90387-166L6-00 Collar |
90387-166L6-00 |
US $12.20 |
||
|
12
|
12
4JC-11631-00-00
Piston (Std)
|
4JC-11631-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4JC-11631-00-A0
Piston(Std)
|
4JC-11631-00-A0 |
— | ||
|
12
|
12
4JC-11636-00-00
Piston (0.50Mm O/s)
|
4JC-11636-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4JC-11636-09-00
Piston (0.50Mm O/s)
|
4JC-11636-09-00 |
— | ||
|
13
|
13
527-11633-00-00 Pin, Piston |
527-11633-00-00 |
from US $14.29 |
||
|
14
|
14
5T8-11603-00-00 Piston Ring Set (Std) |
5T8-11603-00-00 |
US $45.29 |
||
|
14
|
14
5T8-11605-00-00 Piston Ring Set (0.50Mm O/s) |
5T8-11605-00-00 |
US $45.70 |
||
|
15
|
15
93450-13130-00 Circlip |
93450-13130-00 |
from US $2.02 |
||
|
16
|
16
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
