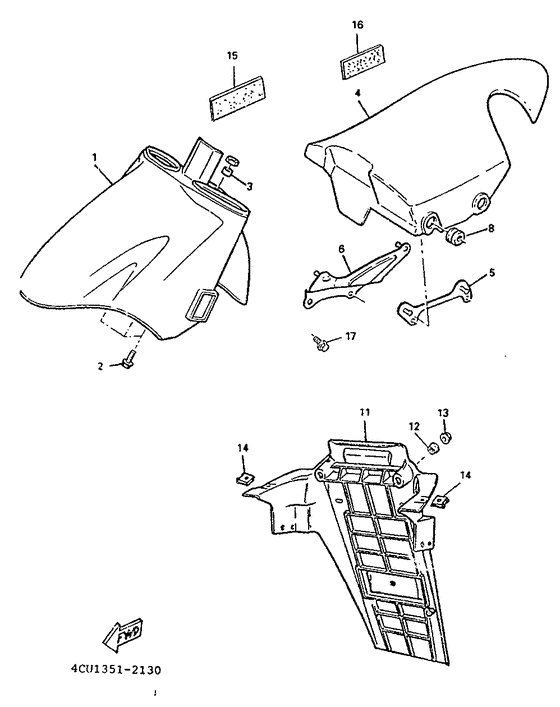

Fender Diagram Yamaha YE80 Zest 80
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4MU3
- Sales region
- Germany (999)
- Engine Capacity
- 80
- Model
- YE80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4CU-F1511-01-4B
Fender, Front
Black 2 |
4CU-F1511-01-4B |
— | ||
|
01
|
01
4CU-F1511-01-PD
Fender, Front
Vivid red candy 4 |
4CU-F1511-01-PD |
— | ||
|
02
|
02
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
02
|
02
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
03
|
03
903-87060-A7-00
Collar
|
903-87060-A7-00 |
— | ||
| replacement | |||||
|
03
|
03
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
04
|
04
4FW-F1611-00-00
Fender, Rear
|
4FW-F1611-00-00 |
— | ||
|
05
|
05
4CU-F161A-00-00
Bracket 3
|
4CU-F161A-00-00 |
— | ||
|
06
|
06
4CU-F1612-01-00
Bracket, Rear Fender
|
4CU-F1612-01-00 |
— | ||
|
08
|
08
90480-14560-00
Grommet
|
90480-14560-00 |
— | ||
|
11
|
11
4CU-F1629-00-00
Guard, Mud
|
4CU-F1629-00-00 |
— | ||
|
12
|
12
90387-07717-00 Collar |
90387-07717-00 |
from US $2.36 |
||
|
13
|
13
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
14
|
14
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
15
|
15
4CU-21649-01-00
Damper
|
4CU-21649-01-00 |
— | ||
|
16
|
16
4CU-21639-01-00
Damper 2
|
4CU-21639-01-00 |
— | ||
|
17
|
17
90105-06841-00 Bolt, Flange |
90105-06841-00 |
US $1.56 |
||
