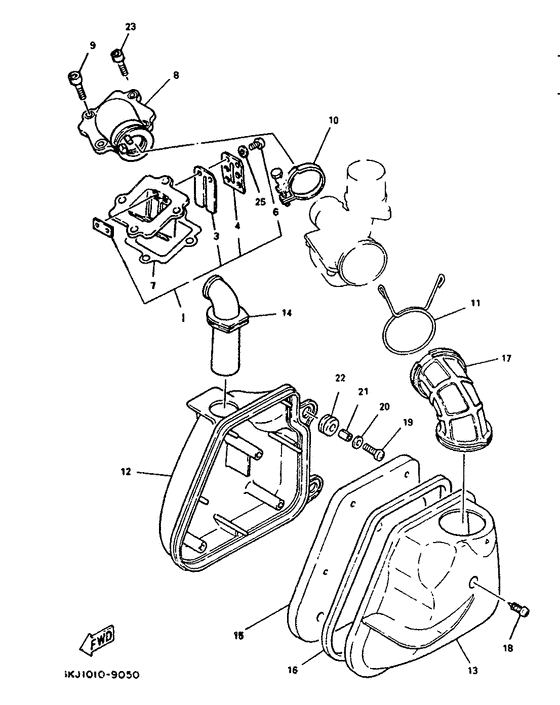

Intake Diagram Yamaha YE80 Zest 80
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4MU3
- Sales region
- Germany (999)
- Engine Capacity
- 80
- Model
- YE80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JC-13610-00-00 Reed Valve Assy |
4JC-13610-00-00 |
US $57.22 |
||
|
03
|
03
3KJ-13613-00-00 Reed, Valve |
3KJ-13613-00-00 |
from US $11.47 |
||
|
04
|
04
3KJ-13616-00-00
Stopper, Reed Valve
|
3KJ-13616-00-00 |
— | ||
| replacement | |||||
|
04
|
04
3VR-13616-00-00
Stopper, Reed Valve
|
3VR-13616-00-00 |
— | ||
|
06
|
06
98507-03006-00 Screw, Pan Head |
98507-03006-00 |
from US $1.56 |
||
|
07
|
07
4FB-13621-00-00 Gasket, Valve Seat |
4FB-13621-00-00 |
from US $10.91 |
||
|
08
|
08
4MU-13555-00-00
Manifold, Intake
|
4MU-13555-00-00 |
— | ||
|
09
|
09
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
10
|
10
90450-32081-00 Hose Clamp Assy |
90450-32081-00 |
from US $7.36 |
||
|
11
|
11
90467-24140-00 Clip(3Vr) |
90467-24140-00 |
from US $3.33 |
||
|
12
|
12
3KJ-14411-11-00 Case, Air Cleaner 1 |
3KJ-14411-11-00 |
from US $30.31 |
||
|
13
|
13
3KJ-14412-00-00 Cap, Cleaner Case 1 |
3KJ-14412-00-00 |
from US $29.36 |
||
|
14
|
14
3YK-14437-00-00 Duct |
3YK-14437-00-00 |
US $17.05 |
||
|
15
|
15
3KJ-14451-00-00 Element, Air Cleaner |
3KJ-14451-00-00 |
from US $9.35 |
||
|
16
|
16
50M-14462-01-00 Seal |
50M-14462-01-00 |
from US $11.12 |
||
|
17
|
17
4JC-14453-00-00 Joint, Air Cleaner 1 |
4JC-14453-00-00 |
from US $26.07 |
||
| replacement | |||||
|
17
|
17
4JC-14453-01-00 Joint, Air Cleaner 1 |
4JC-14453-01-00 |
from US $30.65 |
||
|
18
|
18
977-07501-25-00 Screw, Tapping |
977-07501-25-00 |
from US $1.81 |
||
| replacement | |||||
|
18
|
18
97707-50525-00 Screw, Tapping |
97707-50525-00 |
from US $1.36 |
||
|
19
|
19
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
21
|
21
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.81 |
||
| replacement | |||||
|
21
|
21
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.81 |
||
|
22
|
22
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
23
|
23
90109-060G4-00 Bolt(4Fm) |
90109-060G4-00 |
from US $1.98 |
||
| replacement | |||||
|
23
|
23
901-09062-82-00 Bolt |
901-09062-82-00 |
from US $1.62 |
||
