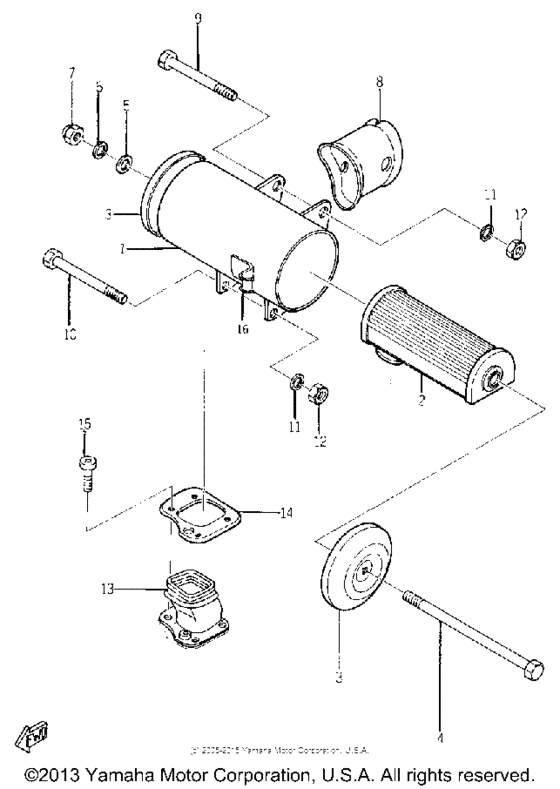

Air cleaner Diagram Yamaha YG1/ YG5
- Year
- 1963
- Sales region
- United States
- Engine Capacity
- 80
- Model
- YG1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
122-14411-00-35
Case, Air Cleaner 1
|
122-14411-00-35 |
— | ||
|
1
|
1
122-14453-00-00
Joint, Air Clnr 1
|
122-14453-00-00 |
— | ||
|
1
|
1
122-14417-00-00
Cover 1
|
122-14417-00-00 |
— | ||
|
2
|
2
122-14451-00-00
Element, Air Clnr
|
122-14451-00-00 |
— | ||
|
3
|
3
122-14412-00-00
Cap, Cleaner Case 1
|
122-14412-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
973-03061-90-00
Bolt, Hexagon
|
973-03061-90-00 |
— | ||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
8
|
8
122-14454-00-00
Joint
|
122-14454-00-00 |
— | ||
|
9
|
9
97022-08100-00 Bolt, Hexagon |
97022-08100-00 |
from US $2.13 |
||
| replacement | |||||
|
9
|
9
970-27081-00-00 Bolt, Hexagon |
970-27081-00-00 |
from US $2.13 |
||
|
10
|
10
97021-08080-00 Bolt |
97021-08080-00 |
from US $2.99 |
||
| replacement | |||||
|
10
|
10
97027-08080-00 Bolt, Hexagon |
97027-08080-00 |
from US $4.68 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
12
|
12
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
13
|
13
126-14453-00-00
Joint, Air Clnr 1
|
126-14453-00-00 |
— | ||
|
14
|
14
126-14417-00-00
Cover 1
|
126-14417-00-00 |
— | ||
|
15
|
15
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
