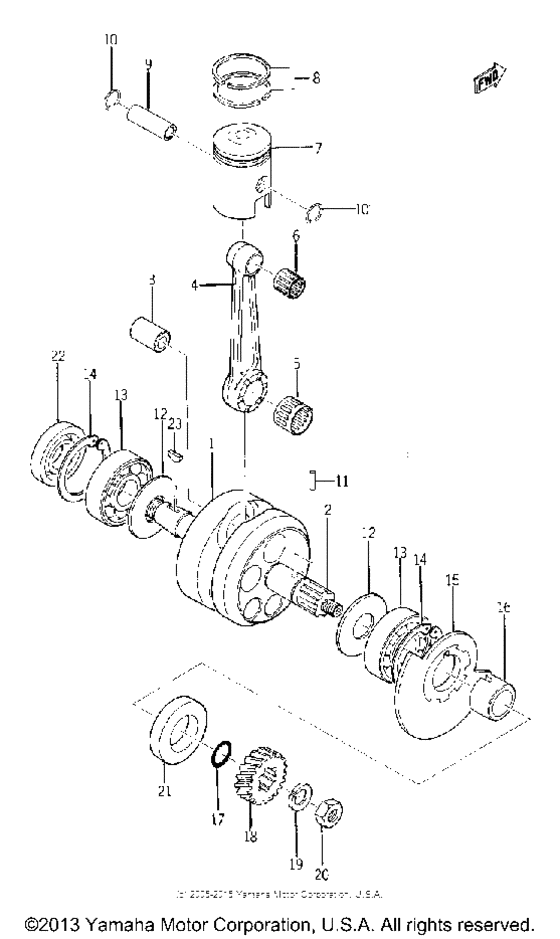

Crankshaft & Piston Diagram Yamaha YG1/ YG5
- Year
- 1963
- Sales region
- United States
- Engine Capacity
- 80
- Model
- YG1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
127-11400-00-00
Crankshaft Assembly
|
127-11400-00-00 |
— | ||
|
1
|
1
127-14101-01-00
Carburetor Assembly 1
|
127-14101-01-00 |
— | ||
|
2
|
2
122-11422-01-00
Crank 2
|
122-11422-01-00 |
— | ||
|
3
|
3
3R1-11681-00-00 Pin, Crank 1 |
3R1-11681-00-00 |
US $72.07 |
||
|
4
|
4
3R1-11651-01-00 Rod, Connecting (3R1-11651-003R1-11651-00 |
3R1-11651-01-00 |
from US $123.10 |
||
|
5
|
5
933-10418-T0-00
Bearing Cylinder #10
#10 |
933-10418-T0-00 |
— | ||
| replacement | |||||
|
5
|
5
93310-418C4-00 Bearing Cylinder #10#10 |
93310-418C4-00 |
from US $19.69 |
||
|
6
|
6
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
|
7
|
7
298-11631-60-97
Piston Std
|
298-11631-60-97 |
— | ||
|
7
|
7
122-11636-01-00
Piston 2 O/s 0.50
O/S 0.50 |
122-11636-01-00 |
— | ||
|
7
|
7
122-11635-01-00
Piston 1 O/s 0.25
O/S 0.25 |
122-11635-01-00 |
— | ||
|
8
|
8
122-11610-00-00
Piston Ringset Std
|
122-11610-00-00 |
— | ||
|
8
|
8
122-11610-20-00
Piston Ringset 2Nd
2ND |
122-11610-20-00 |
— | ||
|
8
|
8
122-11610-10-00
Piston Ringset 1St
1ST |
122-11610-10-00 |
— | ||
|
9
|
9
527-11633-00-00 Pin, Piston |
527-11633-00-00 |
from US $14.29 |
||
|
10
|
10
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.70 |
||
|
11
|
11
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
11
|
11
93603-12007-00 Pin, Dowel |
93603-12007-00 |
from US $1.94 |
||
|
12
|
12
136-11561-00-04
Shim, Crank 1
|
136-11561-00-04 |
— | ||
|
13
|
13
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
| replacement | |||||
|
13
|
13
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
14
|
14
934-50470-11-00
Circlip
|
934-50470-11-00 |
— | ||
|
15
|
15
122-13512-00-00
Valve, Rotary
|
122-13512-00-00 |
— | ||
|
15
|
15
122-13512-01-00
Valve, Rotary
|
122-13512-01-00 |
— | ||
|
16
|
16
122-13515-02-00
Collar, Valve
|
122-13515-02-00 |
— | ||
|
16
|
16
122-13515-00-00
Collar, Valve
|
122-13515-00-00 |
— | ||
|
17
|
17
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $3.14 |
||
|
18
|
18
122-16111-00-00
Gear, Pri Drive
|
122-16111-00-00 |
— | ||
|
19
|
19
136-16135-00-00
Washer, Lock
|
136-16135-00-00 |
— | ||
|
20
|
20
901-70120-56-00
Nut, Hexagon
|
901-70120-56-00 |
— | ||
|
21
|
21
93103-28012-00 Oil Seal |
93103-28012-00 |
from US $9.63 |
||
|
22
|
22
931-02200-39-00
Oil Seal, Sd-Type
|
931-02200-39-00 |
— | ||
|
23
|
23
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
