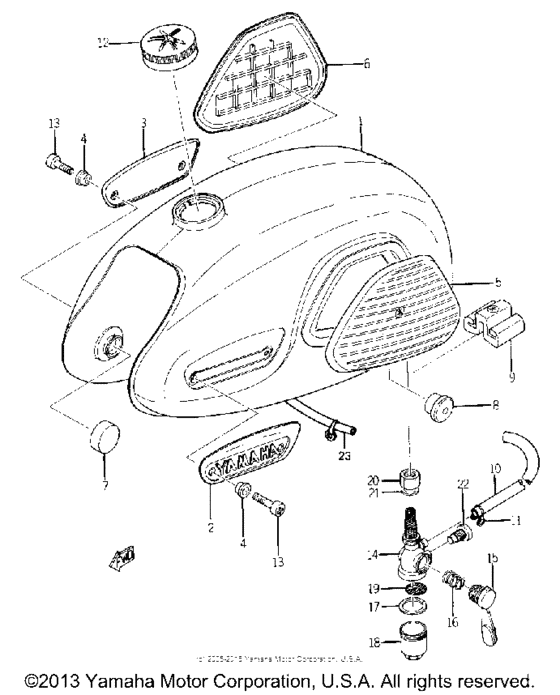

Fuel tank Diagram Yamaha YG1/ YG5
- Year
- 1963
- Sales region
- United States
- Engine Capacity
- 80
- Model
- YG1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
122-24161-00-00
Emblem 1
|
122-24161-00-00 |
— | ||
|
3
|
3
122-24162-00-00
Emblem 2
|
122-24162-00-00 |
— | ||
|
4
|
4
902-02030-02-00
Washer, Plate
|
902-02030-02-00 |
— | ||
|
5
|
5
122-24171-00-00
Grip, Knee 1
|
122-24171-00-00 |
— | ||
|
6
|
6
122-24172-00-00
Grip, Knee 2
|
122-24172-00-00 |
— | ||
|
7
|
7
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $3.51 |
||
|
8
|
8
122-24182-01-00
Damper, Locating 2
|
122-24182-01-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
122-24183-00-00
Damper, Locating 3
|
122-24183-00-00 |
— | ||
|
10
|
10
90445-09112-00 Hose (L675) |
90445-09112-00 |
from US $19.84 |
||
| replacement | |||||
|
10
|
10
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
11
|
11
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
12
|
12
122-24610-01-00 Cap Assembly |
122-24610-01-00 |
from US $22.53 |
||
|
13
|
13
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
14
|
14
367-24500-04-00 Fuel Cock Assembly 1 |
367-24500-04-00 |
from US $122.26 |
||
|
15
|
15
122-24524-00-00
Lever, Cock
|
122-24524-00-00 |
— | ||
|
16
|
16
905-01070-29-00
Spring, Compression
|
905-01070-29-00 |
— | ||
|
17
|
17
102-24522-01-00 Gasket |
102-24522-01-00 |
from US $5.24 |
||
| replacement | |||||
|
17
|
17
102-24522-02-00 Gasket |
102-24522-02-00 |
US $7.88 |
||
|
18
|
18
122-24521-00-00
Cup, Filter
|
122-24521-00-00 |
— | ||
|
19
|
19
122-24515-00-00
Net, Filter 2
|
122-24515-00-00 |
— | ||
|
20
|
20
122-24531-00-00
Nut
|
122-24531-00-00 |
— | ||
|
21
|
21
122-24532-00-00 Gasket |
122-24532-00-00 |
from US $5.67 |
||
|
22
|
22
122-24535-00-00
Screw, Lvr Fitting
|
122-24535-00-00 |
— | ||
|
23
|
23
904-45090-78-00
Hose (L420)
|
904-45090-78-00 |
— | ||
| replacements | |||||
|
23
|
23
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
23
|
23
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
