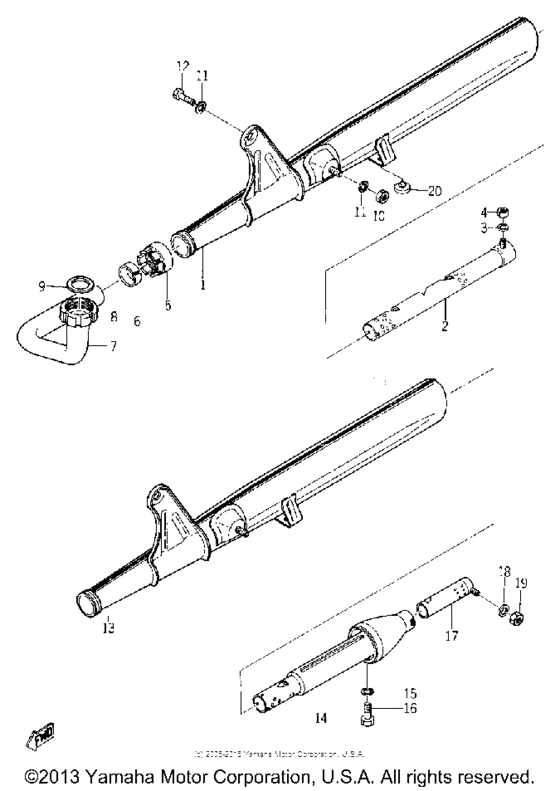

Muffler (1) Diagram Yamaha YG1/ YG5
- Year
- 1963
- Sales region
- United States
- Engine Capacity
- 80
- Model
- YG1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
126-14710-01-00
Muffler Assembly L
|
126-14710-01-00 |
— | ||
|
2
|
2
122-14753-01-00
Silencer, Exhaust
|
122-14753-01-00 |
— | ||
|
3
|
3
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
4
|
4
953-11057-00-00
Nut(3Fv)
|
953-11057-00-00 |
— | ||
| replacement | |||||
|
4
|
4
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
5
|
5
132-14713-00-00 Nut, Muffler Joint |
132-14713-00-00 |
US $29.32 |
||
|
6
|
6
3NA-14714-01-00 Gasket, Muffler |
3NA-14714-01-00 |
from US $16.43 |
||
|
7
|
7
126-14611-00-00
Pipe, Exhaust L
|
126-14611-00-00 |
— | ||
|
8
|
8
1L4-14612-00-00 Nut, Ring |
1L4-14612-00-00 |
from US $15.73 |
||
|
9
|
9
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
9
|
9
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
|
10
|
10
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
12
|
12
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
12
|
12
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
126-14710-01-00
Muffler Assembly L
|
126-14710-01-00 |
— | ||
|
14
|
14
122-14786-20-00
Arrester, Spark
|
122-14786-20-00 |
— | ||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
97313-05010-00 Bolt, Hexagon |
97313-05010-00 |
from US $1.66 |
||
| replacement | |||||
|
16
|
16
970-13050-10-00 Bolt |
970-13050-10-00 |
from US $0.83 |
||
|
17
|
17
122-14785-20-00
Diffuser
|
122-14785-20-00 |
— | ||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
