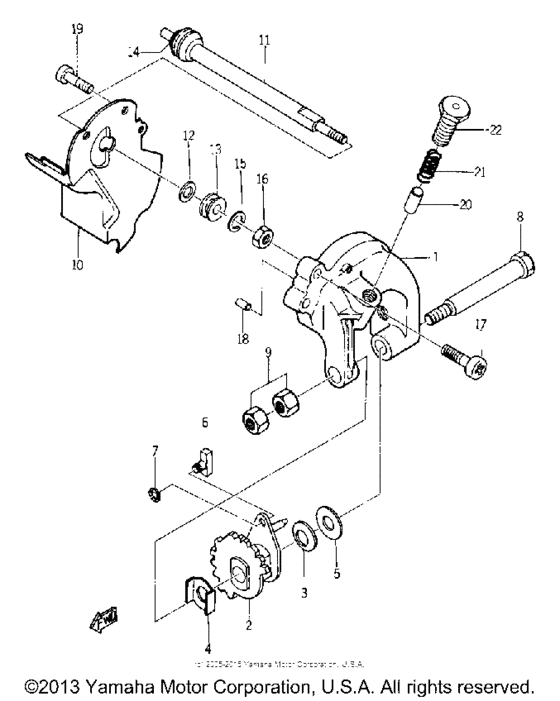

Shift shaft (1) Diagram Yamaha YG1/ YG5
- Year
- 1963
- Sales region
- United States
- Engine Capacity
- 80
- Model
- YG1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
122-18431-01-00
Bracket, Shifter
|
122-18431-01-00 |
— | ||
|
2
|
2
122-18440-00-00
Cam Plate Assembly
|
122-18440-00-00 |
— | ||
|
3
|
3
902-06100-13-00
Washer, Wave
|
902-06100-13-00 |
— | ||
|
4
|
4
90201-105J4-00 Washer, Plate(52H) |
90201-105J4-00 |
from US $2.55 |
||
|
5
|
5
102-18457-00-00
Plate, Thrust
|
102-18457-00-00 |
— | ||
|
6
|
6
122-18421-01-00
Shifter
|
122-18421-01-00 |
— | ||
|
7
|
7
93430-04002-00 Circlip |
93430-04002-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
8
|
8
102-18432-00-00
Shaft, Cam
|
102-18432-00-00 |
— | ||
|
9
|
9
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
10
|
10
102-18428-00-00
Seal, Dust
|
102-18428-00-00 |
— | ||
|
11
|
11
122-18410-00-00 Shifter Rod Assembly |
122-18410-00-00 |
US $15.71 |
||
|
12
|
12
122-18416-00-10
Shim, Rod
|
122-18416-00-10 |
— | ||
|
13
|
13
122-18422-01-00
Retainer, Shifter
|
122-18422-01-00 |
— | ||
|
14
|
14
102-18414-00-10
Shim, Rod
|
102-18414-00-10 |
— | ||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
16
|
16
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
17
|
17
164-81245-20-00
Screw, Pan Head
|
164-81245-20-00 |
— | ||
|
18
|
18
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
19
|
19
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
19
|
19
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
20
|
20
102-18547-00-00
Stopper, Cam
|
102-18547-00-00 |
— | ||
|
21
|
21
905-01100-56-00
Spring, Compression
|
905-01100-56-00 |
— | ||
|
22
|
22
901-09102-01-00
Bolt
|
901-09102-01-00 |
— | ||
