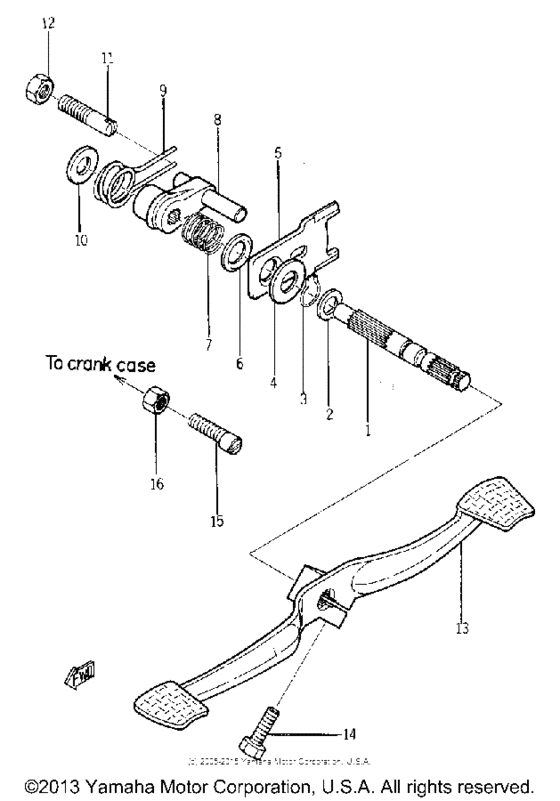

Shift shaft (2) Diagram Yamaha YG1/ YG5
- Year
- 1963
- Sales region
- United States
- Engine Capacity
- 80
- Model
- YG1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
122-18125-00-00
Shaft, Shift
|
122-18125-00-00 |
— | ||
|
2
|
2
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
3
|
3
904-68160-13-00
Clip
|
904-68160-13-00 |
— | ||
|
4
|
4
122-18141-00-00
Plate, Stopper
|
122-18141-00-00 |
— | ||
|
5
|
5
122-18121-00-00
Lever, Shift 1
|
122-18121-00-00 |
— | ||
|
6
|
6
102-18145-00-00
Cover, Spring
|
102-18145-00-00 |
— | ||
|
7
|
7
905-01120-92-00
Spring, Compression
|
905-01120-92-00 |
— | ||
|
8
|
8
122-18120-00-00
Shift Lever Assembly
|
122-18120-00-00 |
— | ||
|
9
|
9
905-08350-65-00
Spring, Torsion
|
905-08350-65-00 |
— | ||
|
10
|
10
90201-105J4-00 Washer, Plate(52H) |
90201-105J4-00 |
from US $2.55 |
||
|
11
|
11
901-13080-22-00
Bolt, Set
|
901-13080-22-00 |
— | ||
|
12
|
12
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
13
|
13
4G2-18111-10-00 Pedal, Shift |
4G2-18111-10-00 |
from US $47.25 |
||
| replacement | |||||
|
13
|
13
4AV-18111-00-00 Pedal, Shift |
4AV-18111-00-00 |
from US $47.25 |
||
|
14
|
14
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
15
|
15
901-49100-13-00
Screw, Specl Shape
|
901-49100-13-00 |
— | ||
|
16
|
16
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
