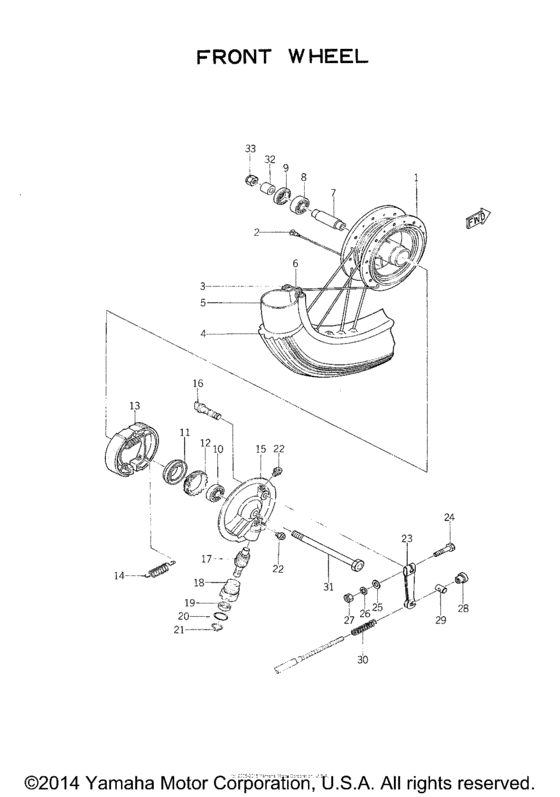

Front wheel Diagram Yamaha YG1/ YG5
- Year
- 1966
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YGS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-25111-01-00
Hub, Front
|
102-25111-01-00 |
— | ||
| replacement | |||||
|
1
|
1
102-25111-01-38
Hub, Front
|
102-25111-01-38 |
— | ||
|
2
|
2
122-25104-00-00
Spoke Set, Front
|
122-25104-00-00 |
— | ||
|
3
|
3
94414-17003-00 Rim 1.40X171.40X17 |
94414-17003-00 |
US $114.95 |
||
|
4
|
4
941-25173-14-00
2.50-17 Irc
250X17 |
941-25173-14-00 |
— | ||
|
5
|
5
94225-17005-00
Tube
|
94225-17005-00 |
— | ||
| replacements | |||||
|
5
|
5
94222-17269-00
Tube (2.25-17)(1Aj)
|
94222-17269-00 |
— | ||
|
5
|
5
94225-17105-00
Tube (2.50-17)
|
94225-17105-00 |
— | ||
|
5
|
5
94225-17082-00
Tube (2.50-17)
|
94225-17082-00 |
— | ||
|
6
|
6
943-32170-04-00
Band, Rim (2.50-17)
2.50-17 |
943-32170-04-00 |
— | ||
|
7
|
7
102-25117-00-00
Spacer, Bearing
|
102-25117-00-00 |
— | ||
|
8
|
8
93306-20203-00 Bearing6202RS |
93306-20203-00 |
from US $15.44 |
||
| replacement | |||||
|
8
|
8
93306-20226-00 Bearing6202RS |
93306-20226-00 |
from US $15.26 |
||
|
9
|
9
931-02200-01-00
Oil Seal
|
931-02200-01-00 |
— | ||
|
10
|
10
93306-20203-00 Bearing6202RS |
93306-20203-00 |
from US $15.44 |
||
| replacement | |||||
|
10
|
10
93306-20226-00 Bearing6202RS |
93306-20226-00 |
from US $15.26 |
||
|
11
|
11
931-07420-01-00
Oil Seal, Os-Type
|
931-07420-01-00 |
— | ||
|
12
|
12
102-25135-01-00
Gear, Drive
22T |
102-25135-01-00 |
— | ||
|
13
|
13
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
14
|
14
102-25333-00-00 Spring, Tension |
102-25333-00-00 |
US $3.97 |
||
| replacement | |||||
|
14
|
14
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
15
|
15
122-25121-01-00
Plate, Brake Shoe
|
122-25121-01-00 |
— | ||
| replacements | |||||
|
15
|
15
122-25121-02-38
Plate, Brake Shoe
|
122-25121-02-38 |
— | ||
|
15
|
15
122-25121-02-00
New Genuine Part
|
122-25121-02-00 |
— | ||
|
16
|
16
122-25351-01-00 Camshaft |
122-25351-01-00 |
from US $36.06 |
||
| replacement | |||||
|
16
|
16
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
17
|
17
122-25138-00-00
Gear, Meter
|
122-25138-00-00 |
— | ||
|
18
|
18
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
19
|
19
93104-07003-00 Oil Seal, So-TypeS0-7-14-4 |
93104-07003-00 |
from US $1.84 |
||
|
20
|
20
932-10130-17-00 O-Ring2.4-13.4 |
932-10130-17-00 |
US $1.28 |
||
| replacement | |||||
|
20
|
20
93210-14579-00 O-Ring (26H)2.4-13.4 |
93210-14579-00 |
from US $1.52 |
||
|
21
|
21
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
22
|
22
93700-06001-00 Nipple, Grease |
93700-06001-00 |
US $3.83 |
||
| replacement | |||||
|
22
|
22
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
22
|
22
109-25155-00-00 Lever, Camshaft 1 |
109-25155-00-00 |
US $49.32 |
||
|
24
|
24
912-01060-30-00 Bolt |
912-01060-30-00 |
US $1.07 |
||
| replacement | |||||
|
24
|
24
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
25
|
25
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
26
|
26
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
28
|
28
137-26344-00-00 Nut, Spec''l Shape |
137-26344-00-00 |
US $3.26 |
||
| replacement | |||||
|
28
|
28
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
29
|
29
136-26349-00-00
Pin, Spec''l Shape
|
136-26349-00-00 |
— | ||
| replacement | |||||
|
29
|
29
902-49101-01-00
Pin, Spec''l Shape
|
902-49101-01-00 |
— | ||
|
30
|
30
136-26348-00-00 Spring, Compression |
136-26348-00-00 |
US $2.94 |
||
| replacement | |||||
|
30
|
30
90501-08038-00 Spring, Compression |
90501-08038-00 |
US $2.94 |
||
|
31
|
31
122-25181-00-00
Axle, Wheel
|
122-25181-00-00 |
— | ||
| replacements | |||||
|
31
|
31
5G3-25181-00-00
Axle, Wheel
|
5G3-25181-00-00 |
— | ||
|
31
|
31
353-25181-01-00
Shaft kit, wheel (353)
|
353-25181-01-00 |
— | ||
|
32
|
32
102-25183-00-00 Collar10-20-23.5 |
102-25183-00-00 |
US $6.46 |
||
| replacement | |||||
|
32
|
32
90387-10079-00 Collar10-20-23.5 |
90387-10079-00 |
US $15.93 |
||
|
33
|
33
102-25382-00-00
Nut, Spec''l Shape
|
102-25382-00-00 |
— | ||
| replacement | |||||
|
33
|
33
901-79101-06-00
Nut, Spec''l Shape
|
901-79101-06-00 |
— | ||
