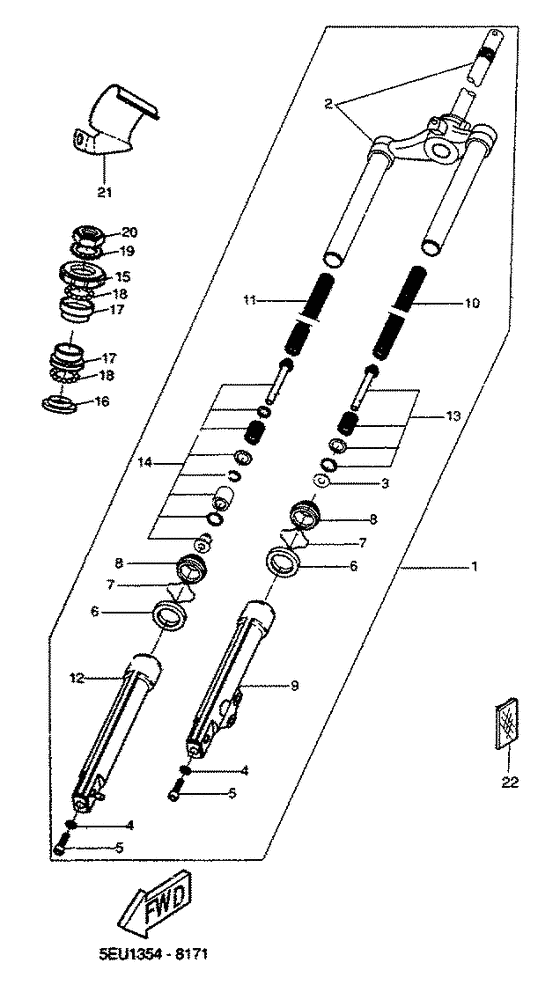

Front fork Diagram Yamaha YH50 Why
- Year
- 2001
- Model code
- 5PF1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- YH50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EU-F3100-00-00
Front Fork Assy
|
5EU-F3100-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5EU-F3100-01-00
Front Fork Assy
|
5EU-F3100-01-00 |
— | ||
|
02
|
02
5EU-F3340-00-00
Under Bracket Comp
|
5EU-F3340-00-00 |
— | ||
|
03
|
03
5EU-F3112-00-00
Washer, Cap
|
5EU-F3112-00-00 |
— | ||
|
04
|
04
5EU-F3165-00-00
Washer, Felt
|
5EU-F3165-00-00 |
— | ||
|
05
|
05
4TD-F3181-00-00
Bolt, Hexagon Socket Head
|
4TD-F3181-00-00 |
— | ||
|
06
|
06
5EU-F3145-00-00
Oil Seal
|
5EU-F3145-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
4TD-F3156-00-00
Clip, Oil Seal
|
4TD-F3156-00-00 |
— | ||
|
08
|
08
5EU-F3144-00-00
Seal, Dust
|
5EU-F3144-00-00 |
— | ||
|
09
|
09
5EU-F3126-00-00
Tube, Outer (L.h)
|
5EU-F3126-00-00 |
— | ||
|
10
|
10
5EU-F3141-00-00
Spring, Front Fork
|
5EU-F3141-00-00 |
— | ||
|
11
|
11
5EU-F3151-00-00
Spring, Rebound
|
5EU-F3151-00-00 |
— | ||
|
12
|
12
5EU-F3136-00-00
Tube, Outer 2
|
5EU-F3136-00-00 |
— | ||
|
13
|
13
5EU-W3124-00-00
Inner Tube 1 Repare Kit
|
5EU-W3124-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
5EU-W3134-00-00
Inner Tube 2 Repare Kit
|
5EU-W3134-00-00 |
— | ||
|
15
|
15
4SB-F3411-01-00
Race, Ball 1
|
4SB-F3411-01-00 |
— | ||
|
16
|
16
4SB-F3414-00-00
Race, Ball 4
|
4SB-F3414-00-00 |
— | ||
|
17
|
17
4SB-F3412-00-00
Race, Ball 2
|
4SB-F3412-00-00 |
— | ||
|
18
|
18
4SB-F3812-00-00
Plane Bearing, Steering
|
4SB-F3812-00-00 |
— | ||
|
19
|
19
4SB-F3427-01-00
Washer
|
4SB-F3427-01-00 |
— | ||
|
20
|
20
4SB-F3453-01-00
Nut, Fitting 1
|
4SB-F3453-01-00 |
— | ||
|
21
|
21
5EU-F5876-00-00
Holder, Brake Hose 2
|
5EU-F5876-00-00 |
— | ||
| replacement | |||||
|
21
|
21
5UB-F5876-00-00
Holder Brake Hose
|
5UB-F5876-00-00 |
— | ||
|
22
|
22
5HE-H5111-00-00 Reflector, Front 1 |
5HE-H5111-00-00 |
US $18.99 |
||
