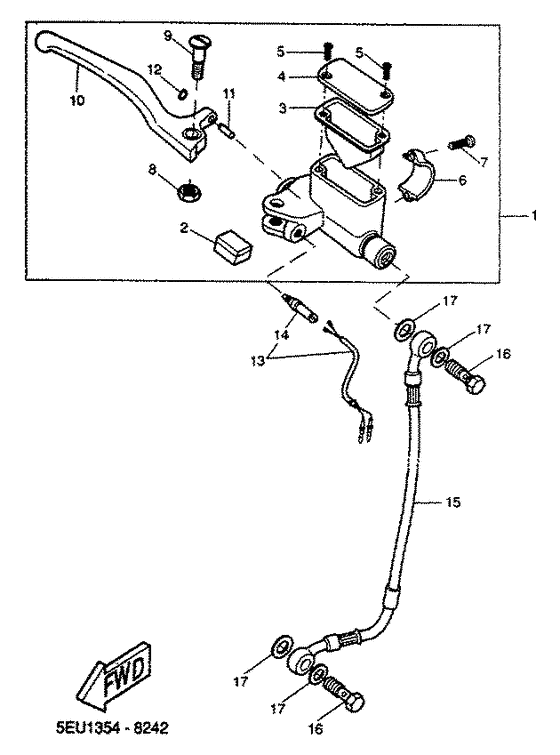

Front master cylinder Diagram Yamaha YH50 Why
- Year
- 2001
- Model code
- 5PF1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- YH50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EU-F583T-00-00
Master Cylinder Assy
|
5EU-F583T-00-00 |
— | ||
|
02
|
02
5BK-F5870-00-00
Master Cylinder Sub Assy
|
5BK-F5870-00-00 |
— | ||
|
03
|
03
5BK-F5854-00-00
Diaphragm, Reservoir
|
5BK-F5854-00-00 |
— | ||
|
04
|
04
5BK-F5852-00-00
Cap, Reservoir
|
5BK-F5852-00-00 |
— | ||
|
05
|
05
5BK-F589H-00-00
Screw
|
5BK-F589H-00-00 |
— | ||
|
06
|
06
5EU-F5867-00-00
Bracket, Master Cylinder
|
5EU-F5867-00-00 |
— | ||
|
07
|
07
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
08
|
08
5BK-H3916-00-00
Nut, Lever Fitting
|
5BK-H3916-00-00 |
— | ||
|
09
|
09
5BK-H3925-00-00
Screw, Lever Fitting
|
5BK-H3925-00-00 |
— | ||
|
10
|
10
5EU-H3922-00-00
Lever 2
|
5EU-H3922-00-00 |
— | ||
|
11
|
11
4TD-F5924-00-00
Pin, Pad
|
4TD-F5924-00-00 |
— | ||
|
12
|
12
4TD-F5925-00-00
Clip
|
4TD-F5925-00-00 |
— | ||
|
13
|
13
5JH-H3980-00-00 Front Stop Switch Assy |
5JH-H3980-00-00 |
from US $27.27 |
||
| replacement | |||||
|
13
|
13
5JH-H3980-30-00 Front Stop Switch Assy |
5JH-H3980-30-00 |
from US $27.77 |
||
|
14
|
14
NM5-83980-10-00 Front Stop Switch AssyFront stop switch assy not il |
NM5-83980-10-00 |
US $42.14 |
||
| replacements | |||||
|
14
|
14
5SE-H253N-01-00 Stop Switch |
5SE-H253N-01-00 |
US $42.14 |
||
|
14
|
14
5SE-H253N-00-00 Stop Switch |
5SE-H253N-00-00 |
US $41.17 |
||
|
15
|
15
5EU-F5872-00-00
Hose, Brake 1
|
5EU-F5872-00-00 |
— | ||
| replacement | |||||
|
15
|
15
5EU-F5872-01-00
Hose Brake
|
5EU-F5872-01-00 |
— | ||
|
16
|
16
90401-10X01-00 Bolt, Union |
90401-10X01-00 |
US $7.22 |
||
|
17
|
17
90201-10X03-00 Washer, Plain |
90201-10X03-00 |
from US $4.68 |
||
