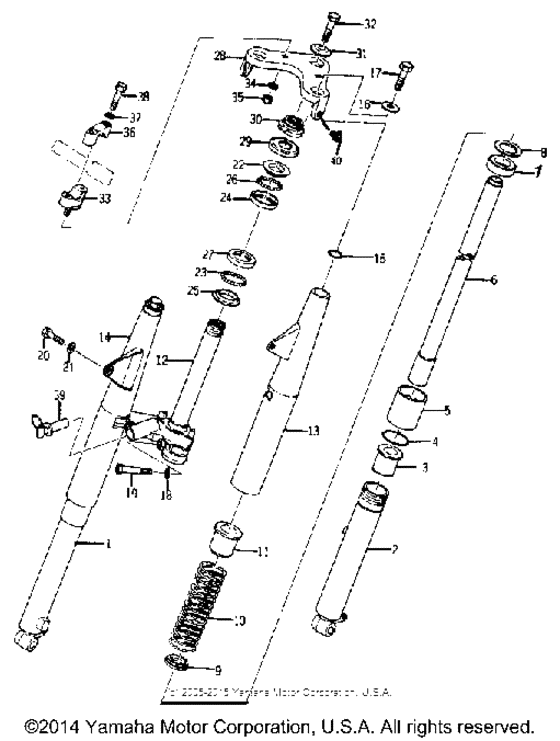

Front fork Diagram Yamaha YJ
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
109-23100-00-81
Front Fork Assembly
|
109-23100-00-81 |
— | ||
|
1
|
1
109-23136-00-35
Tube, Outer 2
|
109-23136-00-35 |
— | ||
|
2
|
2
109-23126-00-35
Tube, Outer 1
|
109-23126-00-35 |
— | ||
|
3
|
3
109-23125-00-00 Metal, Slide 1 |
109-23125-00-00 |
US $21.29 |
||
|
4
|
4
109-23147-00-00
O-Ring
|
109-23147-00-00 |
— | ||
|
5
|
5
109-23150-00-00
Outer Nut
|
109-23150-00-00 |
— | ||
|
6
|
6
109-23124-00-00
Tube, Inner 1
|
109-23124-00-00 |
— | ||
|
6
|
6
109-23134-00-00
Tube, Inner 2
|
109-23134-00-00 |
— | ||
|
7
|
7
109-23145-01-00 Oil Seal |
109-23145-01-00 |
from US $33.66 |
||
|
8
|
8
109-23146-00-00
Washer, Oil Seal
|
109-23146-00-00 |
— | ||
|
9
|
9
109-23143-00-00
Seat, Spring Lower
|
109-23143-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
109-23141-00-00
Spring, Front Fork
|
109-23141-00-00 |
— | ||
|
11
|
11
109-23142-00-00
Seat, Spring Upper
|
109-23142-00-00 |
— | ||
|
12
|
12
109-23340-00-33
Under Bracket
|
109-23340-00-33 |
— | ||
|
13
|
13
109-23121-00-81
Cover, Upper 1
|
109-23121-00-81 |
— | ||
|
14
|
14
109-23131-00-81
Cover, Upper 2
|
109-23131-00-81 |
— | ||
|
15
|
15
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
16
|
16
207-23112-00-00 Washer, Cap |
207-23112-00-00 |
from US $14.45 |
||
|
17
|
17
205-23111-40-00 Bolt, Cap |
205-23111-40-00 |
from US $11.65 |
||
|
18
|
18
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
19
|
19
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
19
|
19
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
20
|
20
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
20
|
20
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
20
|
20
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
21
|
21
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
22
|
22
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
22
|
22
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
23
|
23
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
24
|
24
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
24
|
24
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
25
|
25
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
25
|
25
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
26
|
26
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
26
|
26
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
27
|
27
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
27
|
27
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
28
|
28
122-23435-01-33
Crown, Handle
|
122-23435-01-33 |
— | ||
|
29
|
29
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
30
|
30
90179-25051-00 Nut |
90179-25051-00 |
from US $17.99 |
||
|
31
|
31
90209-10021-00 Washer |
90209-10021-00 |
US $4.53 |
||
| replacement | |||||
|
31
|
31
90209-10160-00 Washer (1Yj) |
90209-10160-00 |
from US $4.53 |
||
|
32
|
32
90105-10006-00 Bolt, Flange |
90105-10006-00 |
from US $4.68 |
||
| replacement | |||||
|
32
|
32
901-06100-46-00 Bolt(3Pp) |
901-06100-46-00 |
from US $6.17 |
||
|
33
|
33
462-23442-00-98 Holder, Handle Lwr |
462-23442-00-98 |
from US $16.42 |
||
|
34
|
34
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
35
|
35
901-85100-31-00
Nut, Self-Locking
|
901-85100-31-00 |
— | ||
|
36
|
36
462-23441-00-00 Holder,handle Upr |
462-23441-00-00 |
from US $14.20 |
||
| replacement | |||||
|
36
|
36
462-23441-01-00 Holder, Handle Upper |
462-23441-01-00 |
from US $17.87 |
||
|
37
|
37
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
38
|
38
97313-06040-00 Bolt (682)682 |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
38
|
38
97095-06040-00 Bolt682 |
97095-06040-00 |
from US $1.39 |
||
|
39
|
39
122-23480-01-00
Steering Lock Assembly
|
122-23480-01-00 |
— | ||
|
40
|
40
146-21717-00-00
Damper, Side Cover
|
146-21717-00-00 |
— | ||
