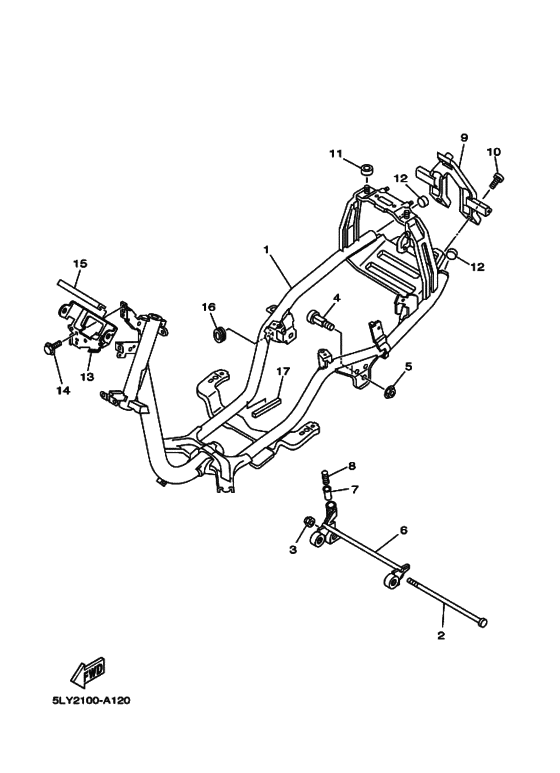

Frame Diagram Yamaha YJ50R Vino
- Year
- 2002
- Colour
- Very Dark Blue Cocktail 4 (VDBC4; 0627)
- Model code
- 5PP2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YJ50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5LY-21110-00-00 Frame Comp |
5LY-21110-00-00 |
US $554.09 |
||
| replacement | |||||
|
1
|
1
5LY-21110-02-00 Frame Comp |
5LY-21110-02-00 |
US $497.57 |
||
|
2
|
2
3KJ-21481-00-00 Bolt, Engine Mounting 1 |
3KJ-21481-00-00 |
US $16.43 |
||
|
3
|
3
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
4
|
4
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
5
|
5
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
6
|
6
4JP-21410-11-00 Engine Bracket Comp |
4JP-21410-11-00 |
US $116.05 |
||
|
7
|
7
2T4-2139X-00-00 Damper |
2T4-2139X-00-00 |
US $1.73 |
||
| replacement | |||||
|
7
|
7
3WG-F139X-00-00
Damper
|
3WG-F139X-00-00 |
— | ||
|
8
|
8
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
9
|
9
5AU-21232-00-00 Reinforcement, Tail |
5AU-21232-00-00 |
from US $62.59 |
||
| replacement | |||||
|
9
|
9
999-99035-75-00 Tail Reinforcement |
999-99035-75-00 |
from US $63.16 |
||
|
10
|
10
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
11
|
11
90387-061Y1-00 Washer, Plate |
90387-061Y1-00 |
US $2.69 |
||
| replacement | |||||
|
11
|
11
90201-06040-00 Washer, Plate |
90201-06040-00 |
from US $2.69 |
||
|
12
|
12
3YJ-24481-00-00 Plug |
3YJ-24481-00-00 |
from US $5.24 |
||
|
13
|
13
5LY-2134Y-00-00 Stay, Horn |
5LY-2134Y-00-00 |
US $85.37 |
||
|
14
|
14
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
15
|
15
5LY-21268-00-00 Seal |
5LY-21268-00-00 |
US $4.05 |
||
|
16
|
16
90480-01006-00 Grommet |
90480-01006-00 |
from US $2 |
||
|
17
|
17
4SV-83526-00-00 Damper 2 |
4SV-83526-00-00 |
US $1.15 |
||
