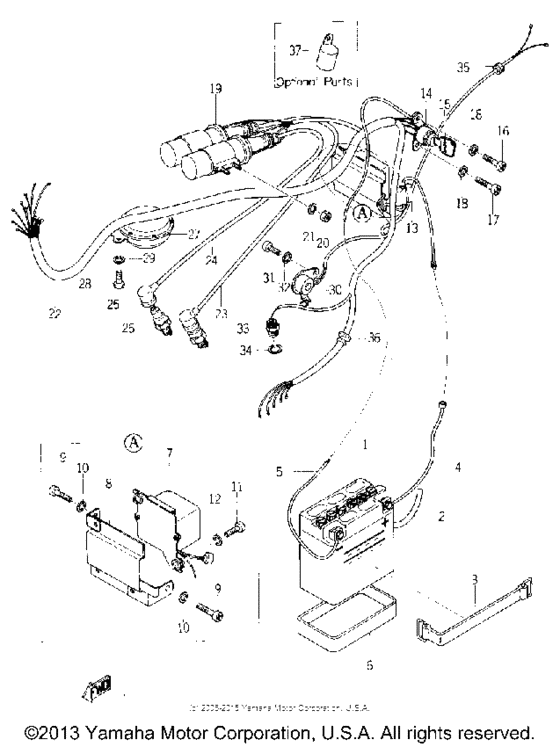

Electrical Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YL1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
1
|
1
BTY-12N73-B0-00
12N73By Yuasa Batte
|
BTY-12N73-B0-00 |
— | ||
| replacement | |||||
|
1
|
1
12N-73BY0-00-00
CB3LB GS BATTERY
|
12N-73BY0-00-00 |
— | ||
|
1
|
1
123-82116-00-00
Wire, Minus Lead
|
123-82116-00-00 |
— | ||
|
1
|
1
BTY-12N55-3B-00
12N5.5-3B Gs Batter
GS BATTER |
BTY-12N55-3B-00 |
— | ||
| replacements | |||||
|
1
|
1
12N-553B0-00-00
element
GS BATTER |
12N-553B0-00-00 |
— | ||
|
1
|
1
12N-553BA-00-00
12N5.5-3B Gs Battery
GS BATTER |
12N-553BA-00-00 |
— | ||
|
1
|
1
19W-15451-01-00
Gasket, Crcs Cover
IN PRICE BOOK |
19W-15451-01-00 |
— | ||
| replacement | |||||
|
1
|
1
19W-15451-02-00
ABSORBER 2
IN PRICE BOOK |
19W-15451-02-00 |
— | ||
|
1
|
1
90445-08171-00
Pipe, Breather
|
90445-08171-00 |
— | ||
| replacements | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
2RH-21826-00-00
Pipe, Breather
|
2RH-21826-00-00 |
— | ||
|
1
|
1
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
1
|
1
123-82115-00-00
Wire, Plus Lead
|
123-82115-00-00 |
— | ||
|
1
|
1
176-81910-11-00
Voltage Reg Assembly
|
176-81910-11-00 |
— | ||
|
1
|
1
133-82590-11-00
Wire Harness Assembly
|
133-82590-11-00 |
— | ||
|
2
|
2
90445-08171-00
Pipe, Breather
|
90445-08171-00 |
— | ||
| replacements | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2RH-21826-00-00
Pipe, Breather
|
2RH-21826-00-00 |
— | ||
|
3
|
3
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
4
|
4
131-82115-00-00
Wire, Plus Lead
|
131-82115-00-00 |
— | ||
|
5
|
5
131-82116-00-00
Wire, Minus Lead
|
131-82116-00-00 |
— | ||
|
6
|
6
102-82122-00-00
Seat, Battery
|
102-82122-00-00 |
— | ||
|
7
|
7
132-81910-11-00
Voltage Reg Assembly
|
132-81910-11-00 |
— | ||
|
8
|
8
132-81915-00-00
Plate, Reg Fitting
|
132-81915-00-00 |
— | ||
|
9
|
9
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
2UJ-82150-01-00 Fuse Holder Assy |
2UJ-82150-01-00 |
from US $11.76 |
||
| replacement | |||||
|
13
|
13
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
14
|
14
131-82508-10-00
Main Switch Assembly
|
131-82508-10-00 |
— | ||
|
16
|
16
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
17
|
17
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
22
|
22
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
23
|
23
132-82341-00-00
Cord, Hight Tension 1
|
132-82341-00-00 |
— | ||
| replacement | |||||
|
23
|
23
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
24
|
24
132-82341-00-00
Cord, Hight Tension 1
|
132-82341-00-00 |
— | ||
| replacement | |||||
|
24
|
24
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
25
|
25
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
26
|
26
NGK-B7HS0-00-00
Ngk Spark Plug B7Hs
B7HS |
NGK-B7HS0-00-00 |
— | ||
| replacement | |||||
|
26
|
26
B7H-S0000-00-00 Ngk Spark Plug B7HsB7HS |
B7H-S0000-00-00 |
US $26.28 |
||
|
27
|
27
131-82271-22-00
New Genuine Part
IN PRICE BOOK |
131-82271-22-00 |
— | ||
|
28
|
28
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
28
|
28
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
30
|
30
122-82530-01-00 Stopswitchassy |
122-82530-01-00 |
US $40.73 |
||
| replacement | |||||
|
30
|
30
122-82530-02-00 Stop Switch Assy |
122-82530-02-00 |
US $36.10 |
||
|
31
|
31
925-03050-12-00 Screw, Pan Head |
925-03050-12-00 |
US $0.88 |
||
|
32
|
32
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
33
|
33
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
33
|
33
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
34
|
34
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
34
|
34
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
35
|
35
122-82596-00-00
Grommet
|
122-82596-00-00 |
— | ||
|
36
|
36
132-82597-00-00
Grommet
|
132-82597-00-00 |
— | ||
|
37
|
37
136-83350-20-00
Flasher Relay Assembly
|
136-83350-20-00 |
— | ||
