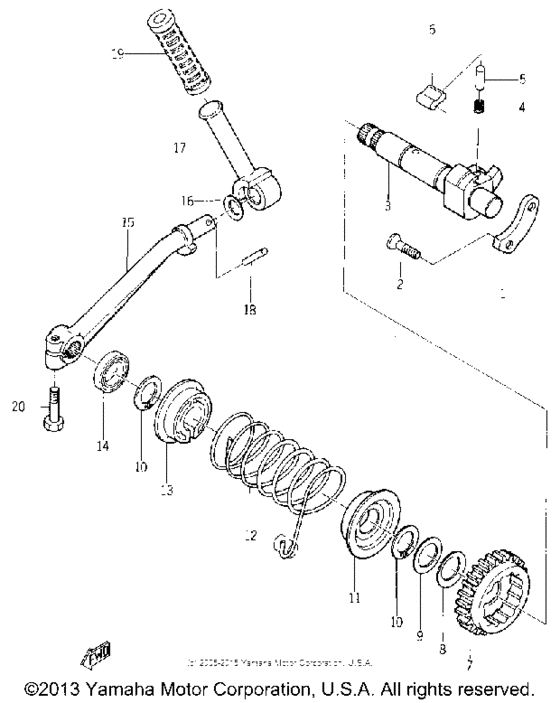

Kick Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YL1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
131-15638-00-00
Stopper, Pawl
|
131-15638-00-00 |
— | ||
|
2
|
2
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
2
|
2
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.34 |
||
|
2
|
2
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
3
|
3
132-15661-00-00
Axle, Kick
|
132-15661-00-00 |
— | ||
|
4
|
4
905-01050-20-00
Spring, Compression
|
905-01050-20-00 |
— | ||
|
5
|
5
902-50050-06-00
Pin, Straight
|
902-50050-06-00 |
— | ||
|
6
|
6
131-15635-00-00
Pawl, Kick
|
131-15635-00-00 |
— | ||
|
7
|
7
132-15641-00-00
Gear, Kick
|
132-15641-00-00 |
— | ||
|
8
|
8
90206-15021-00 Washer, Wave |
90206-15021-00 |
from US $3.12 |
||
|
9
|
9
132-15644-00-00
Shim
|
132-15644-00-00 |
— | ||
|
10
|
10
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
11
|
11
132-15664-01-00 Guide, Spring |
132-15664-01-00 |
from US $11.61 |
||
|
12
|
12
90508-26136-00 Spring, Torsion |
90508-26136-00 |
from US $8.93 |
||
|
13
|
13
132-15676-01-00 Cover, Spring |
132-15676-01-00 |
from US $9.92 |
||
|
14
|
14
93109-15001-00 Oil Seal |
93109-15001-00 |
from US $4.11 |
||
|
15
|
15
3AY-15620-00-00
Kick Crank Assembly
|
3AY-15620-00-00 |
— | ||
|
16
|
16
902-06100-14-00
Washer, Wave
|
902-06100-14-00 |
— | ||
|
17
|
17
214-15612-09-00
Lever, Kick
|
214-15612-09-00 |
— | ||
|
18
|
18
936-04180-17-00
Pin Dowel
|
936-04180-17-00 |
— | ||
|
19
|
19
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $2 |
||
|
20
|
20
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
20
|
20
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
