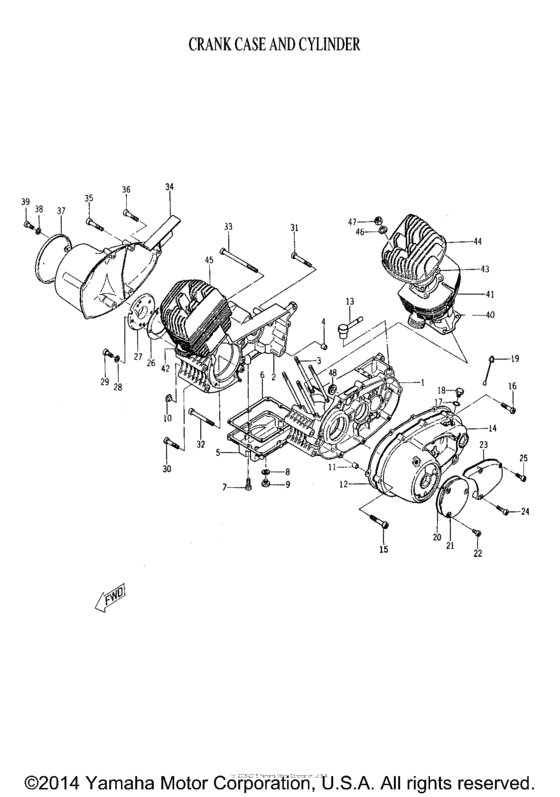

Crankcase and cylinder Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1965
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YM1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
159-15111-01-00
Case, Crank (Lh)
|
159-15111-01-00 |
— | ||
|
2
|
2
159-15121-01-00
Crankcase 2
|
159-15121-01-00 |
— | ||
| replacement | |||||
|
2
|
2
159-15121-00-00
element
|
159-15121-00-00 |
— | ||
|
3
|
3
159-11361-00-00
Bolt, Stud
|
159-11361-00-00 |
— | ||
| replacement | |||||
|
3
|
3
901-16080-78-00
Bolt, Stud
|
901-16080-78-00 |
— | ||
|
4
|
4
918-10080-25-00
Pin, Dowel
9.8-12-25 |
918-10080-25-00 |
— | ||
|
5
|
5
156-15419-00-00
Cover, Shifter 1
|
156-15419-00-00 |
— | ||
| replacement | |||||
|
5
|
5
204-15419-00-00
Cover, Shifter 1
|
204-15419-00-00 |
— | ||
|
6
|
6
150-15459-00-00
Gasket, Shifter Cover
|
150-15459-00-00 |
— | ||
|
7
|
7
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
8
|
8
137-15353-00-00
Gasket, Drain
14.5-21-1.5 |
137-15353-00-00 |
— | ||
| replacement | |||||
|
8
|
8
4F4-14766-00-00 Washer, Protector (Gasket)14.5-21-1.5 |
4F4-14766-00-00 |
from US $5.95 |
||
|
9
|
9
102-15351-00-00
Plug, Straight Scrw
|
102-15351-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
150-15357-00-00
Grommet
|
150-15357-00-00 |
— | ||
| replacement | |||||
|
10
|
10
904-80120-11-00
Grommet
|
904-80120-11-00 |
— | ||
|
11
|
11
918-10030-18-00 Pin, Dowel8.5-10-18 |
918-10030-18-00 |
US $1.98 |
||
| replacements | |||||
|
11
|
11
99530-10114-00 Pin, Dowel8.5-10-18 |
99530-10114-00 |
from US $1.66 |
||
|
11
|
11
995-10101-14-00
Pin, Dowel
8.5-10-18 |
995-10101-14-00 |
— | ||
|
12
|
12
156-15451-00-00
Gasket, Crank Case Cover Left
|
156-15451-00-00 |
— | ||
|
13
|
13
156-15371-00-00
Breather
|
156-15371-00-00 |
— | ||
|
14
|
14
156-15411-01-00
Cover, Crankcase (Lh)
|
156-15411-01-00 |
— | ||
|
15
|
15
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
15
|
15
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
16
|
16
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
16
|
16
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
17
|
17
93210-13016-00 O-Ring1.8-13 |
93210-13016-00 |
from US $1.98 |
||
|
18
|
18
137-15362-00-00
Plug, Oil
|
137-15362-00-00 |
— | ||
| replacement | |||||
|
18
|
18
137-15363-00-00
Plug, Oil
|
137-15363-00-00 |
— | ||
|
19
|
19
156-15361-00-00
Gauge, Level
|
156-15361-00-00 |
— | ||
|
20
|
20
156-15455-00-00
Gasket
|
156-15455-00-00 |
— | ||
|
21
|
21
156-15415-00-00
Cover, Crankcase Cover (Lh)
|
156-15415-00-00 |
— | ||
|
22
|
22
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
23
|
23
156-15416-00-00
Cover, Oil Pump
|
156-15416-00-00 |
— | ||
|
24
|
24
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
24
|
24
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
25
|
25
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
26
|
26
156-15369-00-00
Gasket, Oil Seal Housing
|
156-15369-00-00 |
— | ||
|
27
|
27
156-15359-00-00
Housing, Oil Seal
|
156-15359-00-00 |
— | ||
| replacement | |||||
|
27
|
27
156-15359-01-00
Housing, Oil Seal
|
156-15359-01-00 |
— | ||
|
27
|
27
925-01061-05-00
Screw, Pan Head
|
925-01061-05-00 |
— | ||
|
28
|
28
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
29
|
29
925-01050-12-00 Screw, Pan Head |
925-01050-12-00 |
US $1.21 |
||
| replacements | |||||
|
29
|
29
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
29
|
29
925-03050-12-00 Screw, Pan Head |
925-03050-12-00 |
US $0.88 |
||
|
30
|
30
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
30
|
30
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
31
|
31
92501-06055-00 Screw,panhead |
92501-06055-00 |
US $3.40 |
||
| replacement | |||||
|
31
|
31
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
32
|
32
92501-06060-00 Screw, Pan Head (92580-06560-0092580-06560-00 |
92501-06060-00 |
from US $5.29 |
||
| replacement | |||||
|
32
|
32
985-80065-60-00 Screw, Pan Head (92580-06560-0092580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
33
|
33
925-01061-05-00
Screw, Pan Head
|
925-01061-05-00 |
— | ||
|
34
|
34
156-15421-00-00
Cover, Crankcase (Rh)
|
156-15421-00-00 |
— | ||
|
35
|
35
92501-06045-00 Screw, Pan Head (92503-06045-00 |
92501-06045-00 |
from US $4.25 |
||
| replacement | |||||
|
35
|
35
98580-06545-00 Screw, Pan Head (92503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
36
|
36
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
36
|
36
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
37
|
37
141-15415-00-00
Cover, Generator
|
141-15415-00-00 |
— | ||
| replacement | |||||
|
37
|
37
372-15415-00-00
Cover, Generator
|
372-15415-00-00 |
— | ||
|
38
|
38
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
38
|
38
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
39
|
39
925-01040-15-00 Screw |
925-01040-15-00 |
US $1.42 |
||
| replacement | |||||
|
39
|
39
925-03040-15-00 Screw, Pan Head |
925-03040-15-00 |
US $1.42 |
||
|
40
|
40
159-11351-00-00
Gasket, Cylinder
|
159-11351-00-00 |
— | ||
| replacement | |||||
|
40
|
40
171-11351-00-00
Gasket, Cylinder
|
171-11351-00-00 |
— | ||
|
41
|
41
159-11311-00-00
Cylinder (Lh)
|
159-11311-00-00 |
— | ||
|
42
|
42
159-11321-00-00
Cylinder (Rh)
|
159-11321-00-00 |
— | ||
|
43
|
43
159-11181-00-00
Gasket, Cylinder Head 1
|
159-11181-00-00 |
— | ||
| replacement | |||||
|
43
|
43
159-11181-01-00
Gasket, Cylinder Head 1
|
159-11181-01-00 |
— | ||
|
44
|
44
159-11111-00-00
Head, Cylinder 1
|
159-11111-00-00 |
— | ||
| replacements | |||||
|
44
|
44
171-11111-02-00
Head, Cylinder 1
|
171-11111-02-00 |
— | ||
|
44
|
44
171-11111-01-00
New Genuine Part
|
171-11111-01-00 |
— | ||
|
45
|
45
159-11121-00-00
Head, Cylinder 2
|
159-11121-00-00 |
— | ||
| replacement | |||||
|
45
|
45
171-11121-02-00
Head, Cylinder 2
|
171-11121-02-00 |
— | ||
|
46
|
46
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
46
|
46
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
46
|
46
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
47
|
47
928-01082-00-00 Nut |
928-01082-00-00 |
US $1.42 |
||
| replacements | |||||
|
47
|
47
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
47
|
47
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
48
|
48
156-15356-00-00
Grommet, Oil Pipe
|
156-15356-00-00 |
— | ||
