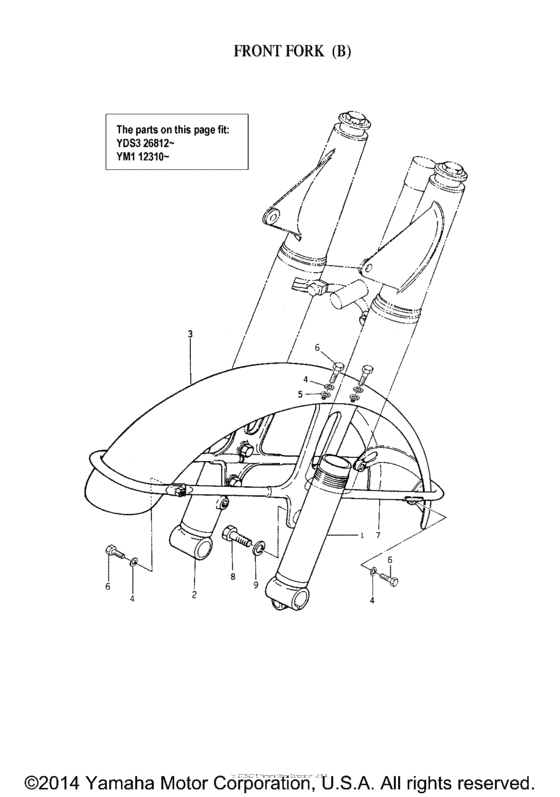

Front fork b Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1965
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YM1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23126-01-00
Tube, Outer (Lh)
|
156-23126-01-00 |
— | ||
|
2
|
2
156-23136-01-00
Tube, Outer (Rh)
|
156-23136-01-00 |
— | ||
|
3
|
3
156-21510-01-00
Front Fender Complete
|
156-21510-01-00 |
— | ||
|
4
|
4
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
92903-06200-00 Washer, Plain |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
6
|
6
912-03060-10-00 Bolt |
912-03060-10-00 |
US $1.28 |
||
| replacement | |||||
|
6
|
6
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
7
|
7
156-21513-01-00
Stay, Front Fender
|
156-21513-01-00 |
— | ||
|
8
|
8
912-01080-12-00 Bolt (661)661 |
912-01080-12-00 |
US $3.12 |
||
| replacements | |||||
|
8
|
8
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
8
|
8
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
9
|
9
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
