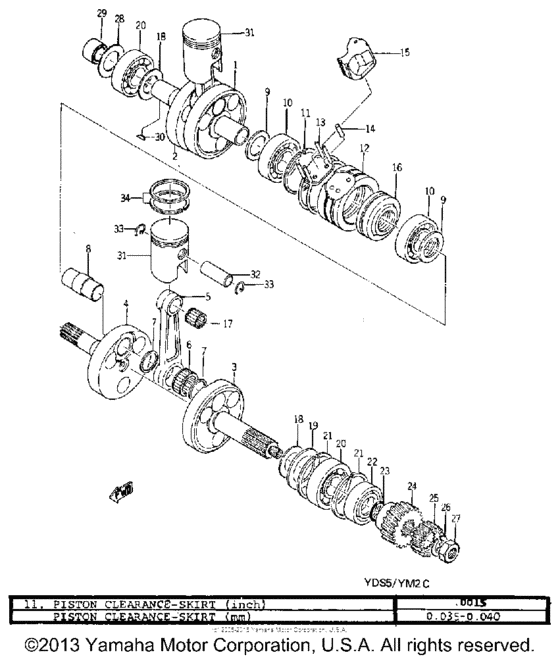

Crank and piston Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YM2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-11432-01-00
Crank 2 (Lh)
|
156-11432-01-00 |
— | ||
|
1
|
1
170-11400-00-00
Crankshaft Assembly
|
170-11400-00-00 |
— | ||
|
1
|
1
171-11400-01-00
Crankshaft Assembly
|
171-11400-01-00 |
— | ||
|
1
|
1
159-11432-00-00
Crank 2 (Lh)
|
159-11432-00-00 |
— | ||
|
2
|
2
171-11442-00-00
Crank 4
|
171-11442-00-00 |
— | ||
|
2
|
2
170-11442-00-00
Crank 4
|
170-11442-00-00 |
— | ||
|
3
|
3
171-11412-00-00
Crank 1
|
171-11412-00-00 |
— | ||
|
3
|
3
170-11412-00-00
Crank 1
|
170-11412-00-00 |
— | ||
|
4
|
4
159-11422-00-00
Crank 1 (Rh)
|
159-11422-00-00 |
— | ||
|
4
|
4
156-11422-01-00
Crank 2
|
156-11422-01-00 |
— | ||
|
5
|
5
246-11651-00-00
Rod, Connecting
|
246-11651-00-00 |
— | ||
|
5
|
5
159-11651-00-00
Rod, Connecting
|
159-11651-00-00 |
— | ||
|
6
|
6
933-10424-17-00
Bearing
|
933-10424-17-00 |
— | ||
|
7
|
7
902-09240-73-00 Washer, Special Shape |
902-09240-73-00 |
from US $4.64 |
||
|
8
|
8
156-11681-00-00
Pin, Crank 1
|
156-11681-00-00 |
— | ||
|
9
|
9
156-11564-00-04
Shim, Crank 4 (25-44-0.5)
25-44-0.5 |
156-11564-00-04 |
— | ||
|
10
|
10
933-06206-22-00
Bearing
|
933-06206-22-00 |
— | ||
| replacement | |||||
|
10
|
10
933-06206-27-00 Bearing (5X5) |
933-06206-27-00 |
from US $30.76 |
||
|
11
|
11
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
11
|
11
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
12
|
12
170-11511-00-00
Cover, Crank
|
170-11511-00-00 |
— | ||
|
13
|
13
170-11512-00-00
Seal, Crank Cover
|
170-11512-00-00 |
— | ||
|
14
|
14
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
15
|
15
170-11541-00-00
Metal, Filler
|
170-11541-00-00 |
— | ||
|
16
|
16
145-11515-01-00
Seal, Labyrinth 1
|
145-11515-01-00 |
— | ||
|
17
|
17
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $27.49 |
||
|
18
|
18
156-11562-00-05
Shim, Crank 2
|
156-11562-00-05 |
— | ||
|
19
|
19
156-11561-00-00
Shim, Crank 1
|
156-11561-00-00 |
— | ||
|
20
|
20
93306-30536-00 Bearing (8R9) |
93306-30536-00 |
from US $25.08 |
||
|
21
|
21
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
21
|
21
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
22
|
22
931-03350-15-00
Oil Seal
|
931-03350-15-00 |
— | ||
|
23
|
23
93210-25071-00 O-Ring |
93210-25071-00 |
from US $1.98 |
||
|
24
|
24
170-16111-00-00
Gear, Pri Drive
|
170-16111-00-00 |
— | ||
|
25
|
25
170-13188-00-00
Gear, Drive
|
170-13188-00-00 |
— | ||
|
26
|
26
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
26
|
26
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
|
27
|
27
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
27
|
27
90170-16425-00 Nut |
90170-16425-00 |
from US $3.12 |
||
|
28
|
28
156-11563-00-00 Shim, Crank 3 |
156-11563-00-00 |
from US $8.93 |
||
|
29
|
29
931-03201-10-00 Oil Seal, Sw-Type |
931-03201-10-00 |
from US $13.88 |
||
|
30
|
30
90280-04005-00
Key, Woodruff
|
90280-04005-00 |
— | ||
|
31
|
31
156-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 ALTERNATE PARTS |
156-11637-00-00 |
— | ||
|
31
|
31
159-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 ALTERNATE PARTS |
159-11638-00-00 |
— | ||
|
31
|
31
159-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 ALTERNATE PARTS |
159-11637-00-00 |
— | ||
|
31
|
31
156-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 ALTERNATE PARTS |
156-11638-00-00 |
— | ||
|
31
|
31
156-11631-00-96
Piston Std
|
156-11631-00-96 |
— | ||
|
31
|
31
159-11631-00-96
Piston Std
|
159-11631-00-96 |
— | ||
|
31
|
31
156-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALTERNATE PARTS |
156-11635-00-00 |
— | ||
|
31
|
31
159-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALTERNATE PARTS |
159-11635-00-00 |
— | ||
|
31
|
31
156-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALTERNATE PARTS |
156-11636-00-00 |
— | ||
|
31
|
31
159-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALTERNATE PARTS |
159-11636-00-00 |
— | ||
|
32
|
32
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
32
|
32
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.99 |
||
|
32
|
32
4H7-11633-00-00 Pin, Piston |
4H7-11633-00-00 |
from US $21.54 |
||
|
33
|
33
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
34
|
34
156-11610-40-00
Piston Ringset 4Th
4TH ALTERNATE PARTS |
156-11610-40-00 |
— | ||
|
34
|
34
159-11601-40-00
Piston Ringset 4Th
4TH ALTERNATE PARTS |
159-11601-40-00 |
— | ||
|
34
|
34
159-11601-10-00
Piston Ringset 1St
1ST ALTERNATE PARTS |
159-11601-10-00 |
— | ||
|
34
|
34
156-11601-10-00
Piston Ringset 1St (0.25Mm)
1ST 0.25MM ALTERNATE PARTS |
156-11601-10-00 |
— | ||
|
34
|
34
159-11601-00-00
Piston Ringset Std
|
159-11601-00-00 |
— | ||
|
34
|
34
156-11601-00-00
Piston Ringset Std
|
156-11601-00-00 |
— | ||
|
34
|
34
159-11601-30-00
Piston Ringset 3Rd
3RD ALTERNATE PARTS |
159-11601-30-00 |
— | ||
|
34
|
34
156-11610-30-00
Piston Ringset 3Rd
3RD ALTERNATE PARTS |
156-11610-30-00 |
— | ||
|
34
|
34
159-11601-20-00
Piston Ringset 2Nd
2ND ALTERNATE PARTS |
159-11601-20-00 |
— | ||
|
34
|
34
156-11601-20-00
Piston Ringset 2Nd
2ND ALTERNATE PARTS |
156-11601-20-00 |
— | ||
