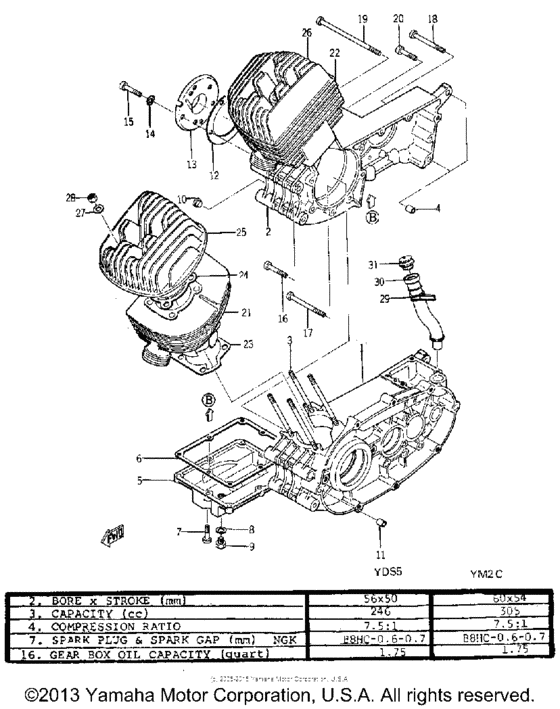

Crankcase Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YM2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204-15111-01-00
New Genuine Part
IN PRICE BOOK |
204-15111-01-00 |
— | ||
|
1
|
1
171-15111-02-00
New Genuine Part
IN PRICE BOOK |
171-15111-02-00 |
— | ||
|
2
|
2
171-15121-02-00
Crankcase 2
ISO |
171-15121-02-00 |
— | ||
|
2
|
2
170-15121-02-00
Crankcase 2
ISO |
170-15121-02-00 |
— | ||
|
3
|
3
901-16080-78-00
Bolt, Stud
|
901-16080-78-00 |
— | ||
|
3
|
3
901-16080-76-00
Bolt, Stud
|
901-16080-76-00 |
— | ||
|
4
|
4
918-10050-25-00
Pin, Dowel
|
918-10050-25-00 |
— | ||
|
5
|
5
204-15419-00-00
Cover, Shifter 1
|
204-15419-00-00 |
— | ||
|
6
|
6
150-15459-00-00
Gasket, Shifter Cover
|
150-15459-00-00 |
— | ||
|
12
|
12
156-15369-00-00
Gasket, Oil Seal Housing
|
156-15369-00-00 |
— | ||
|
13
|
13
156-15359-01-00
Housing, Oil Seal
|
156-15359-01-00 |
— | ||
|
14
|
14
92990-05400-00
Washer, Ex.tooth
|
92990-05400-00 |
— | ||
|
15
|
15
925-03050-12-00 Screw, Pan Head |
925-03050-12-00 |
US $0.88 |
||
|
15
|
15
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
16
|
16
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
16
|
16
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
17
|
17
925-80065-60-00
Screw, Pan Head (92580-06560-00
92580-06560-00 |
925-80065-60-00 |
— | ||
| replacement | |||||
|
17
|
17
985-80065-60-00 Screw, Pan Head (92580-06560-0092580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
18
|
18
98580-06055-00 Screw,panhead |
98580-06055-00 |
US $3.40 |
||
| replacement | |||||
|
18
|
18
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
19
|
19
925-01061-05-00
Screw, Pan Head
|
925-01061-05-00 |
— | ||
|
20
|
20
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
21
|
21
171-11311-00-00
Cylinder 1
|
171-11311-00-00 |
— | ||
|
21
|
21
170-11311-00-00
Cylinder 1
|
170-11311-00-00 |
— | ||
|
22
|
22
170-11321-00-00
Cylinder 2
|
170-11321-00-00 |
— | ||
|
22
|
22
171-11321-00-00
Cylinder 2
|
171-11321-00-00 |
— | ||
|
23
|
23
171-11351-00-00
Gasket, Cylinder
|
171-11351-00-00 |
— | ||
|
24
|
24
156-11181-01-00
Gasket, Cylinder Head
|
156-11181-01-00 |
— | ||
|
24
|
24
159-11181-01-00
Gasket, Cylinder Head 1
|
159-11181-01-00 |
— | ||
|
25
|
25
204-11111-00-00
Head, Cylinder 1
|
204-11111-00-00 |
— | ||
|
25
|
25
171-11111-02-00
Head, Cylinder 1
|
171-11111-02-00 |
— | ||
|
26
|
26
171-11121-02-00
Head, Cylinder 2
|
171-11121-02-00 |
— | ||
|
26
|
26
204-11121-00-00
Head, Cylinder 2
|
204-11121-00-00 |
— | ||
|
27
|
27
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
28
|
28
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
28
|
28
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
29
|
29
170-15376-00-00
Holder, Guide
|
170-15376-00-00 |
— | ||
|
30
|
30
170-15377-00-00
Guide, Inlet
|
170-15377-00-00 |
— | ||
|
31
|
31
204-15371-00-00
Breather
|
204-15371-00-00 |
— | ||
