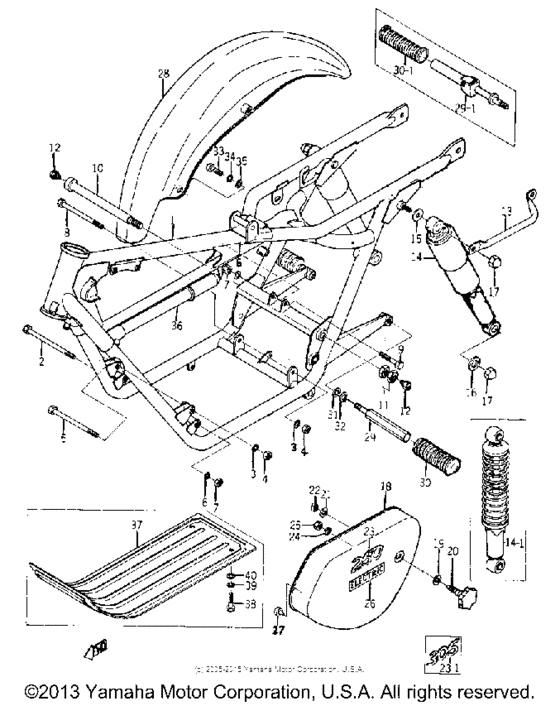

Frame Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YM2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204-21110-11-33
Frame
|
204-21110-11-33 |
— | ||
|
1
|
1
172-21110-02-00
Frame
|
172-21110-02-00 |
— | ||
|
2
|
2
901-01100-85-00
Bolt
|
901-01100-85-00 |
— | ||
|
3
|
3
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
4
|
4
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
5
|
5
901-05080-33-00
Bolt, Washer Based
|
901-05080-33-00 |
— | ||
|
5
|
5
90105-08034-00 Bolt, Washer BasedBolt m8-240l |
90105-08034-00 |
US $10.75 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
90105-10227-00 Bolt, Washer Based |
90105-10227-00 |
US $7.79 |
||
| replacement | |||||
|
8
|
8
95817-10165-00 Bolt,flange |
95817-10165-00 |
from US $7.79 |
||
|
9
|
9
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
9
|
9
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
10
|
10
156-22141-00-00
Shaft, Pivot
|
156-22141-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
901-70141-47-00
Nut, Hexagon
|
901-70141-47-00 |
— | ||
|
12
|
12
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
13
|
13
168-21165-00-00
Handle, Standing
|
168-21165-00-00 |
— | ||
|
14
|
14
156-22210-01-44
Shk/abs Assembly, Rear
|
156-22210-01-44 |
— | ||
|
14
|
14
156-22210-01-63
Shk/abs Assembly, Rear
|
156-22210-01-63 |
— | ||
|
14
|
14
157-22210-20-00
Shk/abs Assembly, Rear
|
157-22210-20-00 |
— | ||
|
14
|
14
156-22210-01-81
Shk/abs Assembly, Rear
|
156-22210-01-81 |
— | ||
|
15
|
15
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.66 |
||
|
16
|
16
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
16
|
16
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
17
|
17
95303-10800-00 Nut |
95303-10800-00 |
US $3.12 |
||
| replacement | |||||
|
17
|
17
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
18
|
18
170-21711-00-29
Cover, Side 1
BLUE |
170-21711-00-29 |
— | ||
|
19
|
19
136-21715-00-00
Washer
|
136-21715-00-00 |
— | ||
|
20
|
20
156-21714-00-00
Knob, Side Cover
|
156-21714-00-00 |
— | ||
|
21
|
21
156-21729-00-00
Damper, Side Cover Clamp
|
156-21729-00-00 |
— | ||
|
22
|
22
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
22
|
22
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
23
|
23
170-21786-00-00
Emblem 6
|
170-21786-00-00 |
— | ||
|
23
|
23
171-21786-00-00
Emblem 6
|
171-21786-00-00 |
— | ||
|
24
|
24
90202-04003-00 Washer, Plate |
90202-04003-00 |
from US $2.41 |
||
|
25
|
25
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
26
|
26
176-21787-00-00
Emblem 7
|
176-21787-00-00 |
— | ||
|
27
|
27
141-21717-00-00 Damper |
141-21717-00-00 |
from US $3.26 |
||
|
28
|
28
172-21610-00-00
Fender, Rear
|
172-21610-00-00 |
— | ||
|
28
|
28
170-21610-00-00
Fender, Rear
|
170-21610-00-00 |
— | ||
|
29
|
29
169-27431-00-00
Footrest, Rear 1
|
169-27431-00-00 |
— | ||
|
29
|
29
172-27430-00-00
Rr Footrest Assembly 1
|
172-27430-00-00 |
— | ||
|
30
|
30
156-27433-00-00
Cover, Foot Rest Rear
RR FOOTREST |
156-27433-00-00 |
— | ||
|
30
|
30
157-27433-00-00
Cover, Foot Rest Rear
RR FOOTREST |
157-27433-00-00 |
— | ||
|
31
|
31
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
32
|
32
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
33
|
33
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
33
|
33
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
34
|
34
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
35
|
35
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
36
|
36
150-28181-00-00
Pump, Air
|
150-28181-00-00 |
— | ||
|
37
|
37
157-21471-00-33
Protector, Engine
|
157-21471-00-33 |
— | ||
|
38
|
38
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
38
|
38
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
40
|
40
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
