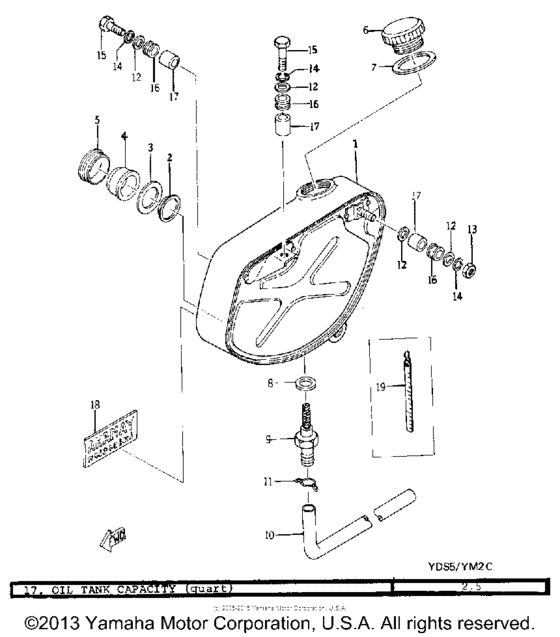

Oil tank Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YM2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
170-21751-00-81
Tank, Oil
|
170-21751-00-81 |
— | ||
|
2
|
2
137-21761-00-00
Gauge, Level
|
137-21761-00-00 |
— | ||
|
3
|
3
137-21763-00-00
Gasket, Level Gauge
|
137-21763-00-00 |
— | ||
|
4
|
4
137-21764-00-00
Lens, Level Gauge
|
137-21764-00-00 |
— | ||
|
5
|
5
901-79361-07-00
Nut, Spec''l Shape (137-21762-0
137-21762 |
901-79361-07-00 |
— | ||
|
6
|
6
137-21771-61-00
Body, Cap
|
137-21771-61-00 |
— | ||
|
7
|
7
137-21772-02-00
Gasket, Cap
|
137-21772-02-00 |
— | ||
|
8
|
8
904-30100-29-00
Gasket
|
904-30100-29-00 |
— | ||
|
9
|
9
137-21768-01-00
Screw, Union
|
137-21768-01-00 |
— | ||
|
10
|
10
90445-09361-00
Hose (L540)
|
90445-09361-00 |
— | ||
|
11
|
11
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
12
|
12
90201-08104-00
Washer, Plate
|
90201-08104-00 |
— | ||
|
13
|
13
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
15
|
15
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
15
|
15
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
16
|
16
156-21778-00-00
Damper, Oil Tank 1
|
156-21778-00-00 |
— | ||
|
17
|
17
156-21748-00-00
Collar, Oil Tank 1
|
156-21748-00-00 |
— | ||
|
18
|
18
137-21782-60-00
Emblem 2
|
137-21782-60-00 |
— | ||
|
19
|
19
170-21792-10-00
Gauge, Oil
|
170-21792-10-00 |
— | ||
