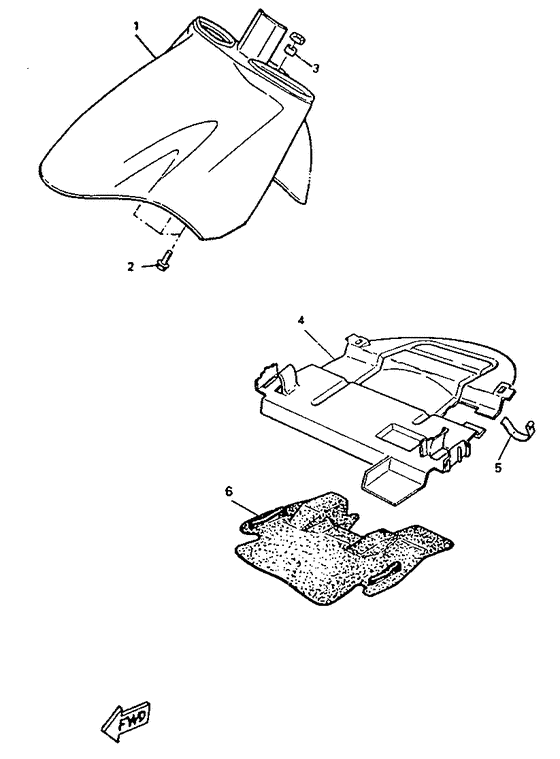

Fender Diagram Yamaha YM50 Breeze
- Year
- 1995
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4RC1
- Sales region
- Germany (999)
- Engine Capacity
- 50
- Model
- YM50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KH-F1511-00-4B
Fender, Front
Fur deep orange candy 1 |
4KH-F1511-00-4B |
— | ||
|
01
|
01
4KH-F1511-00-LK
Fender, Front
Fur raspberry red |
4KH-F1511-00-LK |
— | ||
|
01
|
01
4KH-F1511-00-P1
Fender, Front
Dark bluish grey metallic 3 |
4KH-F1511-00-P1 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Dark bluish grey metallic 3 |
999-99999-99-00 |
— | ||
|
01
|
01
4KH-F1511-00-P2
Fender, Front
Vivid red cocktail 1 |
4KH-F1511-00-P2 |
— | ||
|
02
|
02
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $0.90 |
||
|
03
|
03
903-87060-A7-00
Collar
|
903-87060-A7-00 |
— | ||
| replacement | |||||
|
03
|
03
90387-06113-00 Collar |
90387-06113-00 |
from US $1.50 |
||
|
04
|
04
4KH-F4141-00-00
Protector, Fuel Tank
|
4KH-F4141-00-00 |
— | ||
|
05
|
05
35R-2414L-00-00
Plate, Fitting 2
|
35R-2414L-00-00 |
— | ||
|
06
|
06
3VP-21642-00-00 Guard, Flap |
3VP-21642-00-00 |
US $14.99 |
||
