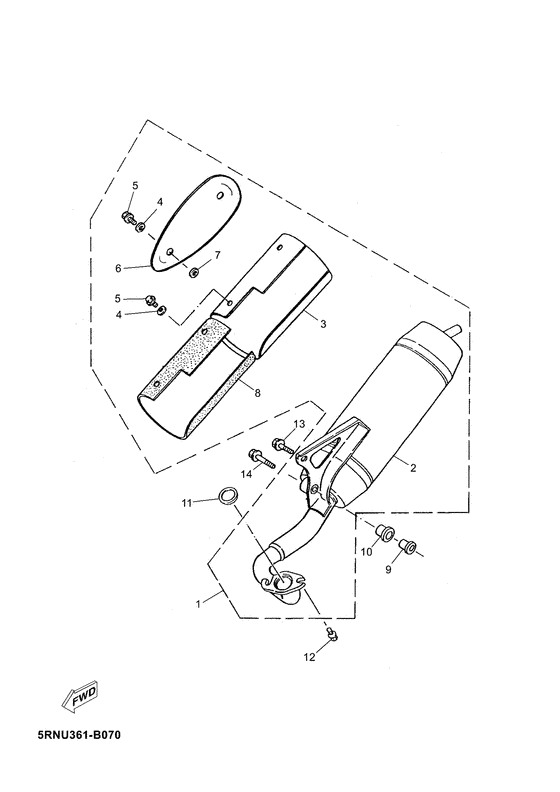

Exhaust Diagram Yamaha YN50 NEO'S
- Year
- 2006
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 1P9F
- Sales region
- Switzerland (010)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RN-E4602-10-00
Exhaust pipe comp.
|
5RN-E4602-10-00 |
— | ||
|
02
|
02
5RN-E4610-10-00
Exhaust pipe assy 1
|
5RN-E4610-10-00 |
— | ||
|
03
|
03
5BW-E4718-00-00
Protector, Muffler 1
|
5BW-E4718-00-00 |
— | ||
|
04
|
04
5BW-F2245-00-00 Washer 3 |
5BW-F2245-00-00 |
US $1.07 |
||
| replacements | |||||
|
04
|
04
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
04
|
04
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
05
|
05
9760M-06210-00
Screw, Pan Head With Washer
|
9760M-06210-00 |
— | ||
|
06
|
06
5BW-E4729-00-00
Emblem, Protector
|
5BW-E4729-00-00 |
— | ||
|
07
|
07
5BW-E4766-00-00
Washer, Protector
|
5BW-E4766-00-00 |
— | ||
|
08
|
08
5BW-E4728-00-00
Protector, Muffler 2
|
5BW-E4728-00-00 |
— | ||
|
09
|
09
5AD-E4613-00-00 Gasket, Exhaust Pi |
5AD-E4613-00-00 |
US $8.36 |
||
|
10
|
10
90149-06X04-00
Screw
|
90149-06X04-00 |
— | ||
|
11
|
11
9581M-08020-00 Bolt, Flange |
9581M-08020-00 |
US $0.85 |
||
|
12
|
12
9581M-08030-00
Bolt, Flange
|
9581M-08030-00 |
— | ||
|
13
|
13
4MJ-E4445-00-00 Grommet |
4MJ-E4445-00-00 |
from US $2.83 |
||
|
14
|
14
4MJ-E4779-00-00 Collar |
4MJ-E4779-00-00 |
US $4.39 |
||
| replacement | |||||
|
14
|
14
5EU-E4779-00-00 Collar |
5EU-E4779-00-00 |
from US $4.39 |
||
