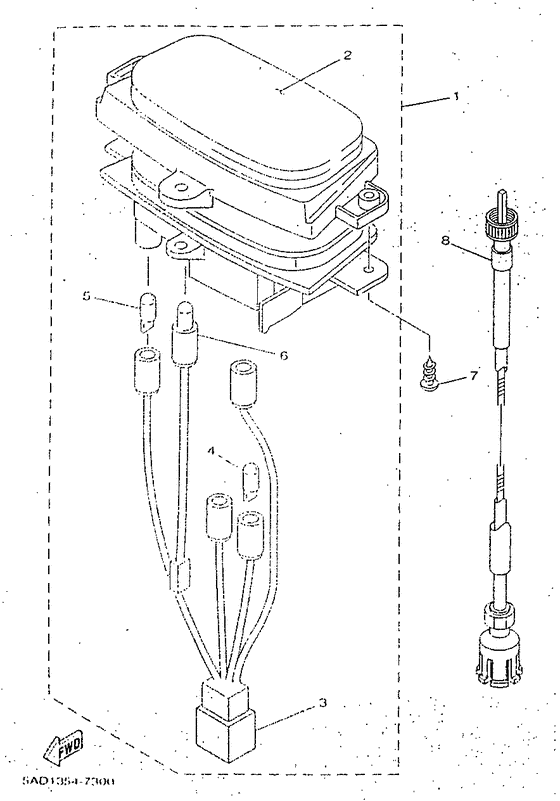

Panel de cuenta kms. y testigo Diagram Yamaha YN50 NEO'S
- Year
- 1998
- Colour
- Fine Silver (FIS; 00LK)
- Model code
- 5AD5
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5AD-H3510-00-00
Speedometer Assy
|
5AD-H3510-00-00 |
— | ||
|
02
|
02
4SB-H353K-00-00
Glass Plate
|
4SB-H353K-00-00 |
— | ||
|
03
|
03
5AD-H3520-00-00
Socket Cord Assy
|
5AD-H3520-00-00 |
— | ||
|
04
|
04
4MJ-H3516-00-00
Bulb(12V 3W)
|
4MJ-H3516-00-00 |
— | ||
|
05
|
05
4MJ-H3517-00-00
Bulb(12V 1.2W)
|
4MJ-H3517-00-00 |
— | ||
|
06
|
06
5AD-H3538-00-00
Socket, Flasher
|
5AD-H3538-00-00 |
— | ||
|
07
|
07
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
07
|
07
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
07
|
07
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
08
|
08
5AD-H3550-00-00
Speedometer Cable Assy
|
5AD-H3550-00-00 |
— | ||
| replacement | |||||
|
08
|
08
5AD-H3550-10-00
Speedometer Cable Assy
|
5AD-H3550-10-00 |
— | ||
