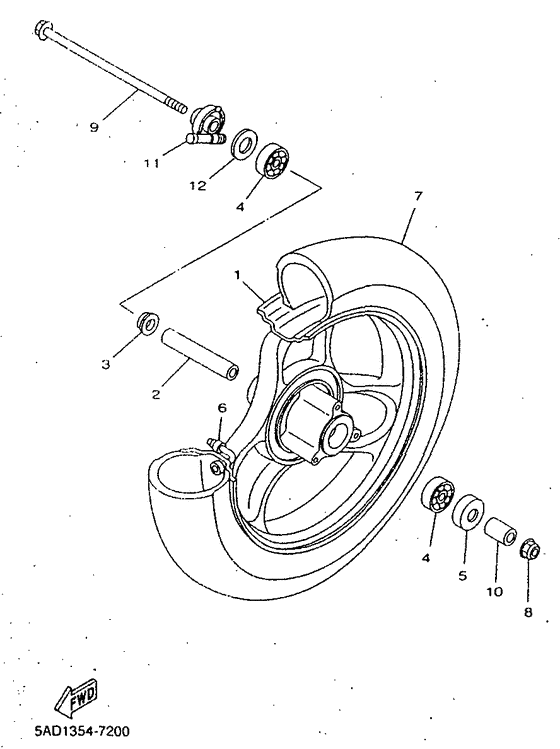

Front wheel Diagram Yamaha YN50 NEO'S
- Year
- 1999
- Model code
- 5ADE
- Sales region
- France (010)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5AD-F5168-00-3C
Cast Wheel, Front
Ur lygm1 |
5AD-F5168-00-3C |
— | ||
|
02
|
02
5AD-F5117-00-00
Spacer, Bearing
|
5AD-F5117-00-00 |
— | ||
| replacement | |||||
|
02
|
02
5AD-W5117-00-00
Spacer, Bearing
|
5AD-W5117-00-00 |
— | ||
|
03
|
03
4KH-F5115-00-00
Flange, Spacer 1
|
4KH-F5115-00-00 |
— | ||
| replacements | |||||
|
03
|
03
4KH-W5115-17-00 Flange, Spacer 1 |
4KH-W5115-17-00 |
US $14.29 |
||
|
03
|
03
4KH-W5117-00-00
Cjto. Casquillo Separador
|
4KH-W5117-00-00 |
— | ||
|
04
|
04
93306-300Y8-00 Bearing |
93306-300Y8-00 |
from US $25.64 |
||
|
05
|
05
93106-20001-00 Oil Seal |
93106-20001-00 |
US $5.81 |
||
|
06
|
06
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
08
|
08
90185-10840-00
Tuerca
|
90185-10840-00 |
— | ||
| replacement | |||||
|
08
|
08
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
09
|
09
486-22141-01-00 Shaft, Pivot |
486-22141-01-00 |
from US $19.84 |
||
|
10
|
10
5AD-E5105-00-00
Nozzle assy
|
5AD-E5105-00-00 |
— | ||
|
11
|
11
5AD-F5190-00-00
Gear Unit Assy
|
5AD-F5190-00-00 |
— | ||
|
12
|
12
5AD-F5119-00-00
Seal, Hub Dust
|
5AD-F5119-00-00 |
— | ||
