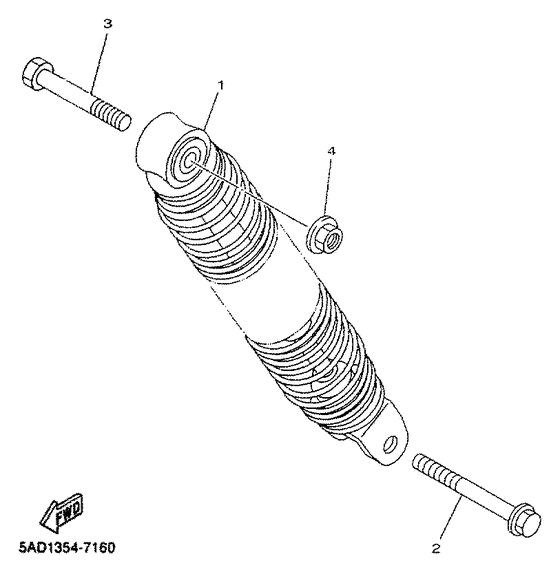

Rear suspension Diagram Yamaha YN50 NEO'S
- Year
- 2000
- Colour
- New Silver Dust (NSD; 003H)
- Model code
- 5ADV
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5KK-F2210-00-33
Shock Absorber Assy, Rear
|
5KK-F2210-00-33 |
— | ||
|
02
|
02
90105-08121-00 Bolt, Flange |
90105-08121-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
03
|
03
90101-10872-00
Bolt
|
90101-10872-00 |
— | ||
|
04
|
04
90185-10840-00
Tuerca
|
90185-10840-00 |
— | ||
| replacement | |||||
|
04
|
04
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
