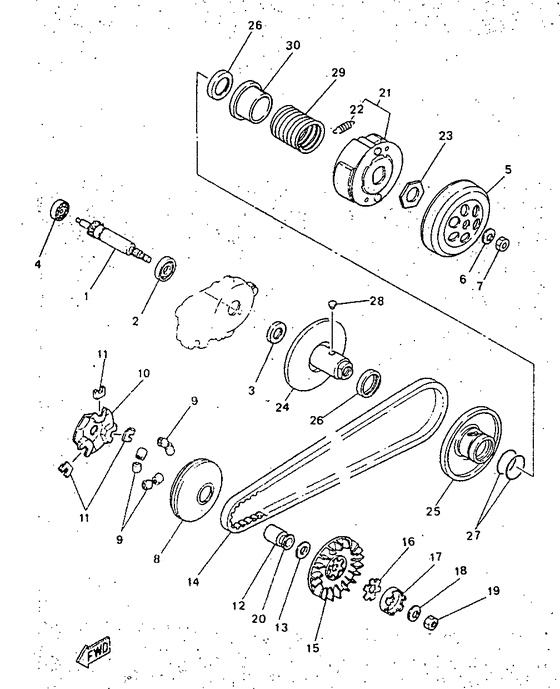

Clutch Diagram Yamaha YN50 NEO'S
- Year
- 1998
- Colour
- Fine Silver (FIS; 00LK)
- Model code
- 5BW1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-E6111-00-00 Gear, Primary Drive |
3VL-E6111-00-00 |
from US $114.12 |
||
|
02
|
02
933-06203-01-00
Bearing
|
933-06203-01-00 |
— | ||
| replacement | |||||
|
02
|
02
933-06203-27-00 Bearing (7X9) |
933-06203-27-00 |
from US $26.35 |
||
|
03
|
03
93102-17342-00 Oil Seal |
93102-17342-00 |
from US $12.04 |
||
| replacements | |||||
|
03
|
03
93102-17467-00 Oil Seal |
93102-17467-00 |
from US $12.04 |
||
|
03
|
03
931-02178-03-00 Oil Seal (Mio Al115S) |
931-02178-03-00 |
from US $3.42 |
||
|
04
|
04
93306-20006-00 Bearing (B6200) |
93306-20006-00 |
from US $10.63 |
||
| replacement | |||||
|
04
|
04
93306-20009-00 Bearing (3R0) |
93306-20009-00 |
from US $12.89 |
||
|
05
|
05
5BR-E6611-00-00 Clutch Housing Com |
5BR-E6611-00-00 |
US $77.17 |
||
| replacement | |||||
|
05
|
05
5BR-E6611-10-00 Clutch Housing Comp |
5BR-E6611-10-00 |
US $80.62 |
||
|
06
|
06
90179-10370-00 Nut, Specl Shape |
90179-10370-00 |
from US $5.81 |
||
|
07
|
07
3VL-F5384-00-00 Washer, Wheel |
3VL-F5384-00-00 |
from US $1.98 |
||
|
08
|
08
4CU-E7620-00-00 Primary Sliding Shea |
4CU-E7620-00-00 |
US $98.37 |
||
| replacement | |||||
|
08
|
08
5WW-E7620-10-00 Primary Sliding Sheave Comp |
5WW-E7620-10-00 |
US $89.60 |
||
|
09
|
09
3VL-E7632-01-00
Weight
|
3VL-E7632-01-00 |
— | ||
| replacement | |||||
|
09
|
09
3VL-E7632-01-PL
Weight
|
3VL-E7632-01-PL |
— | ||
|
10
|
10
3VL-E7623-00-00 Cam |
3VL-E7623-00-00 |
from US $11.32 |
||
| replacement | |||||
|
10
|
10
4B0-E7623-00-00 Cam |
4B0-E7623-00-00 |
US $19.75 |
||
|
11
|
11
3VL-E7653-00-00 Slider |
3VL-E7653-00-00 |
from US $4.43 |
||
| replacement | |||||
|
11
|
11
4B0-E7653-00-00 Slider |
4B0-E7653-00-00 |
from US $6.39 |
||
|
12
|
12
90387-135U9-00 Collar |
90387-135U9-00 |
from US $7.51 |
||
|
13
|
13
90201-133M8-00 Washer, Plate |
90201-133M8-00 |
from US $1.60 |
||
|
14
|
14
3AA-17641-00-00
V-Belt
|
3AA-17641-00-00 |
— | ||
| replacement | |||||
|
14
|
14
5RN-E7641-10-00 V-Belt |
5RN-E7641-10-00 |
US $64.42 |
||
|
15
|
15
3VL-E7611-00-00 Sheave, Primary Fi |
3VL-E7611-00-00 |
from US $53.21 |
||
| replacement | |||||
|
15
|
15
5WW-E7611-10-00 Sheave, Primary Fixed |
5WW-E7611-10-00 |
US $75.04 |
||
|
16
|
16
90214-13055-00 Washer, Claw |
90214-13055-00 |
from US $9.21 |
||
|
17
|
17
3VL-E5657-00-00 Clutch, Oneway |
3VL-E5657-00-00 |
US $29.92 |
||
| replacement | |||||
|
17
|
17
3KJ-15657-00-00 Clutch, Oneway |
3KJ-15657-00-00 |
from US $19.13 |
||
|
18
|
18
90208-10012-00 Washer, Conical Spring |
90208-10012-00 |
from US $1.35 |
||
|
19
|
19
90170-10219-00 Nut |
90170-10219-00 |
from US $1.35 |
||
| replacement | |||||
|
19
|
19
90170-10011-00 Nut |
90170-10011-00 |
from US $1.35 |
||
|
20
|
20
4PC-E7654-00-00
Spacer 1
|
4PC-E7654-00-00 |
— | ||
| replacement | |||||
|
20
|
20
5HG-E7654-00-00
Spacer 1
|
5HG-E7654-00-00 |
— | ||
|
21
|
21
5BR-E6620-00-00 Clutch Carrier Assy |
5BR-E6620-00-00 |
US $244.08 |
||
|
22
|
22
5BR-E6626-00-00 Spring, Clutch Weight 1 |
5BR-E6626-00-00 |
US $10.57 |
||
|
23
|
23
90170-28860-00 Nut |
90170-28860-00 |
US $21.35 |
||
|
24
|
24
5BR-E7660-00-00 Secondary Fixed Sheave Comp |
5BR-E7660-00-00 |
US $348.64 |
||
|
25
|
25
5BR-E7670-00-00
Secondary Sliding Sheave
|
5BR-E7670-00-00 |
— | ||
| replacement | |||||
|
25
|
25
5BR-E7671-00-00 Secondary Sliding Sheave |
5BR-E7671-00-00 |
US $262.69 |
||
|
26
|
26
93109-34832-00
Oil Seal
|
93109-34832-00 |
— | ||
| replacement | |||||
|
26
|
26
93104-34832-00 Oil Seal |
93104-34832-00 |
US $12.78 |
||
|
27
|
27
93210-368E7-00 O-Ring |
93210-368E7-00 |
US $4.81 |
||
|
28
|
28
5BR-E7664-00-00 Pin, Guide |
5BR-E7664-00-00 |
US $10.49 |
||
|
29
|
29
90501-35864-00
Spring, Compression
|
90501-35864-00 |
— | ||
|
30
|
30
5BR-E7684-00-00 Seat, Secondary Spring |
5BR-E7684-00-00 |
US $25.96 |
||
| replacement | |||||
|
30
|
30
5BR-E7684-10-00 Seat, Secondary Spring |
5BR-E7684-10-00 |
US $20.61 |
||
