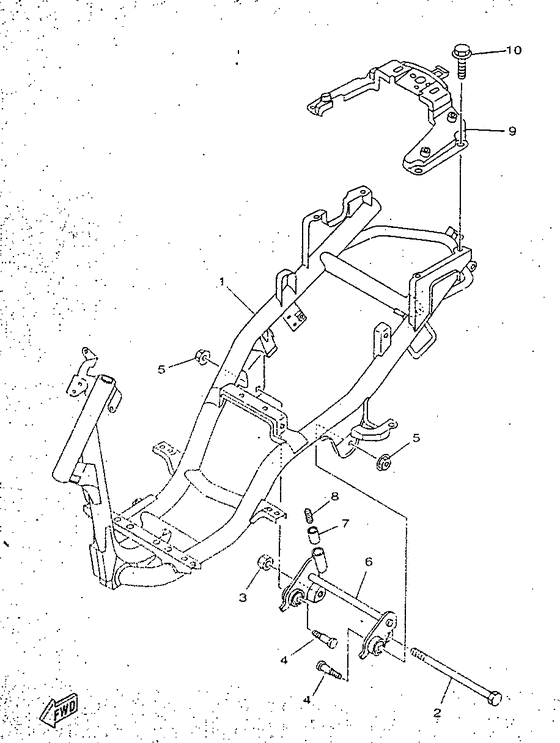

Frame Diagram Yamaha YN50 NEO'S
- Year
- 1998
- Colour
- Fine Silver (FIS; 00LK)
- Model code
- 5BW1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5AD-F1110-00-33
Frame Comp
Ur yb |
5AD-F1110-00-33 |
— | ||
| replacement | |||||
|
01
|
01
5AD-F1110-10-33
Frame Comp
Ur yb |
5AD-F1110-10-33 |
— | ||
|
02
|
02
3KJ-21481-00-00 Bolt, Engine Mounting 1 |
3KJ-21481-00-00 |
US $16.43 |
||
|
03
|
03
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
04
|
04
3WG-F1481-10-00 Bolt, Engine Mounting 1 |
3WG-F1481-10-00 |
US $18.56 |
||
|
05
|
05
90185-10840-00
Tuerca
|
90185-10840-00 |
— | ||
| replacement | |||||
|
05
|
05
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
06
|
06
5AD-F1410-00-00
Engine Bracket Comp
|
5AD-F1410-00-00 |
— | ||
| replacement | |||||
|
06
|
06
5AD-X1410-00-00
Engine Bracket Comp
|
5AD-X1410-00-00 |
— | ||
|
07
|
07
3WG-F139X-00-00
Damper
|
3WG-F139X-00-00 |
— | ||
|
08
|
08
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.83 |
||
| replacement | |||||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
09
|
09
5AD-F1232-01-00
Reinforcement, Tail
|
5AD-F1232-01-00 |
— | ||
| replacement | |||||
|
09
|
09
5AD-F1232-02-00
Reinforcement, Tail
|
5AD-F1232-02-00 |
— | ||
|
10
|
10
95821-08012-00 Bolt, Flange |
95821-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
