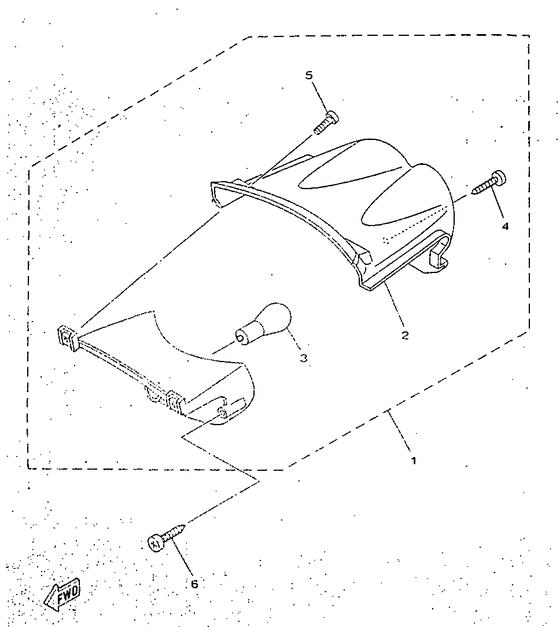

Taillight Diagram Yamaha YN50 NEO'S
- Year
- 1998
- Colour
- Fine Silver (FIS; 00LK)
- Model code
- 5BW1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5AD-H4700-00-00
Taillight Assy
|
5AD-H4700-00-00 |
— | ||
|
02
|
02
5AD-H4721-00-00
Lens, Taillight
|
5AD-H4721-00-00 |
— | ||
|
03
|
03
4BA-H4714-00-00
Bulb (P21/5W)
|
4BA-H4714-00-00 |
— | ||
|
04
|
04
5AD-H3333-00-00
Screw, Lens Fitting
|
5AD-H3333-00-00 |
— | ||
|
05
|
05
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
06
|
06
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
06
|
06
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
06
|
06
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
