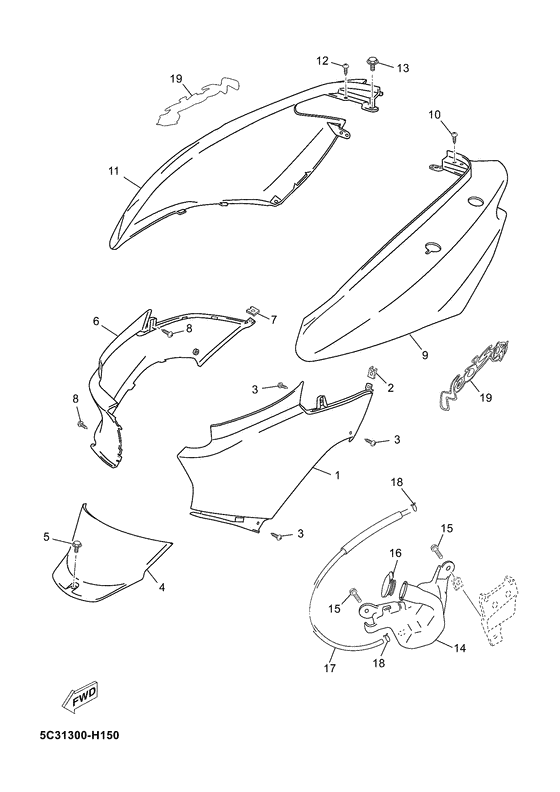

Side cover Diagram Yamaha YN50 NEO'S 4ST
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5C31
- Sales region
- Ireland (070)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5C2-F1711-00-00
Cover, Side 1
|
5C2-F1711-00-00 |
— | ||
|
02
|
02
5DS-F8317-00-00
Nut, Spring
|
5DS-F8317-00-00 |
— | ||
|
03
|
03
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
04
|
04
5C2-F1716-00-00
Lid, Side Cover
|
5C2-F1716-00-00 |
— | ||
|
05
|
05
90149-06184-00 Screw, Binding |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
05
|
05
90149-06306-00 Screw |
90149-06306-00 |
from US $2 |
||
|
06
|
06
5C2-F1721-00-00
Cover, Side 2
|
5C2-F1721-00-00 |
— | ||
|
07
|
07
5DS-F8317-00-00
Nut, Spring
|
5DS-F8317-00-00 |
— | ||
|
08
|
08
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
09
|
09
5C2-F1731-00-P4
Cover, Side 3
For smx |
5C2-F1731-00-P4 |
— | ||
|
09
|
09
5C2-F1731-00-P7
Cover, Side 3
For bwc1 |
5C2-F1731-00-P7 |
— | ||
|
09
|
09
5C2-F1731-00-P8
Cover, Side 3
For dpbmx |
5C2-F1731-00-P8 |
— | ||
|
10
|
10
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
11
|
11
5C2-F1741-00-P8
Cover, Side 4
For dpbmx |
5C2-F1741-00-P8 |
— | ||
|
11
|
11
5C2-F1741-00-P4
Cover, Side 4
For smx |
5C2-F1741-00-P4 |
— | ||
|
11
|
11
5C2-F1741-00-P7
Cover, Side 4
For bwc1 |
5C2-F1741-00-P7 |
— | ||
|
12
|
12
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
13
|
13
90119-06X01-00
Bolt, With Washer
|
90119-06X01-00 |
— | ||
|
14
|
14
5C3-F1871-00-00
Tank, Recovery
|
5C3-F1871-00-00 |
— | ||
|
15
|
15
90119-06X02-00
Bolt, With Washer
|
90119-06X02-00 |
— | ||
|
16
|
16
1B9-F1771-00-00
Body, Cap
|
1B9-F1771-00-00 |
— | ||
|
17
|
17
5C3-F1817-00-00
Pipe 2
|
5C3-F1817-00-00 |
— | ||
|
18
|
18
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
18
|
18
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
19
|
19
5C3-F1781-00-00
Emblem, 1
|
5C3-F1781-00-00 |
— | ||
