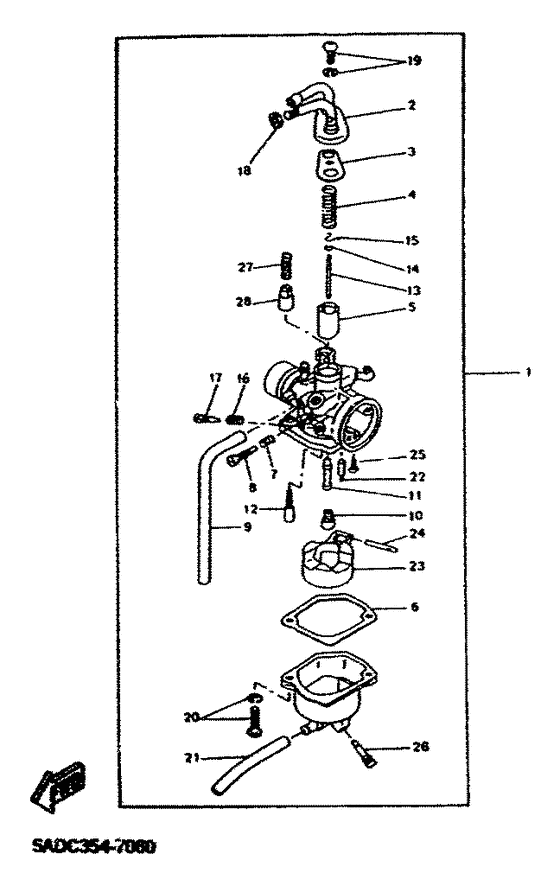

Carburetor Diagram Yamaha YN50 NEO'S
- Year
- 2001
- Colour
- New Silver Dust (NSD; 003H)
- Model code
- 5MR5
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5AD-14301-00-00
Carburetor Assy 1
|
5AD-14301-00-00 |
— | ||
|
02
|
02
5AD-14369-00-00
Diaphragm Assy 2
|
5AD-14369-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
1YU-14126-00-00 Gasket |
1YU-14126-00-00 |
from US $7.23 |
||
|
04
|
04
1YU-14331-00-00 Spring, Throttle Valve |
1YU-14331-00-00 |
from US $3.59 |
||
|
05
|
05
5AD-14312-30-00
Valve, Throttle 1
|
5AD-14312-30-00 |
— | ||
|
06
|
06
1YU-14384-00-00 Gasket, Float Chamber |
1YU-14384-00-00 |
from US $11.16 |
||
|
07
|
07
14T-14337-00-00
Air Jet, Main
|
14T-14337-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
367-14211-00-00 Screw, Pilot Adjusting |
367-14211-00-00 |
US $23.66 |
||
| replacement | |||||
|
08
|
08
1YU-14103-00-00 Throttle Screw Set |
1YU-14103-00-00 |
from US $23.66 |
||
|
09
|
09
5AD-14197-00-00
Pipe
|
5AD-14197-00-00 |
— | ||
|
10
|
10
14T-14343-37-00 Jet, Main #74 |
14T-14343-37-00 |
from US $8.50 |
||
|
11
|
11
2XX-14341-00-00 Nozzle, Main |
2XX-14341-00-00 |
US $26.42 |
||
|
12
|
12
1YU-14353-25-00 Pilot Jet (50)Jet, pilot ( 50) |
1YU-14353-25-00 |
US $6.50 |
||
|
13
|
13
5AD-14336-00-00
Needle
|
5AD-14336-00-00 |
— | ||
| replacement | |||||
|
13
|
13
5AD-1490J-00-00
Needle Set
|
5AD-1490J-00-00 |
— | ||
|
14
|
14
2T4-14137-00-00
Clip
|
2T4-14137-00-00 |
— | ||
|
15
|
15
2T4-14136-00-00
Seat, Spring
|
2T4-14136-00-00 |
— | ||
|
16
|
16
14T-14212-00-00
Spring, Pilot Adjusting
|
14T-14212-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
14T-14323-00-00 Screw |
14T-14323-00-00 |
from US $10.71 |
||
| replacement | |||||
|
17
|
17
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $12.82 |
||
|
18
|
18
288-14161-00-00
Nut, Cable Adjusting
|
288-14161-00-00 |
— | ||
| replacement | |||||
|
18
|
18
85L-14161-00-00
Nut, Cable Adjusting
|
85L-14161-00-00 |
— | ||
|
19
|
19
97901-05112-00
Screw, With Washer
|
97901-05112-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
97901-04116-00 Screw, With Washer |
97901-04116-00 |
US $1.07 |
||
| replacement | |||||
|
20
|
20
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
21
|
21
5AD-14349-00-00
Pipe
|
5AD-14349-00-00 |
— | ||
|
22
|
22
2JA-14382-00-00
Cap, drain pipe
|
2JA-14382-00-00 |
— | ||
|
23
|
23
1YU-14385-00-00 Float |
1YU-14385-00-00 |
from US $75.85 |
||
|
24
|
24
1YU-14386-00-00 Pin, Float |
1YU-14386-00-00 |
from US $7.33 |
||
| replacement | |||||
|
24
|
24
14T-14386-00-00 Pin, Float |
14T-14386-00-00 |
from US $7.79 |
||
|
25
|
25
98501-03006-00 Screw, Pan Head |
98501-03006-00 |
from US $2.13 |
||
| replacement | |||||
|
25
|
25
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.13 |
||
|
26
|
26
14T-14323-00-00 Screw |
14T-14323-00-00 |
from US $10.71 |
||
| replacement | |||||
|
26
|
26
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $12.82 |
||
|
27
|
27
1YU-14335-00-00 Spring, Plunger |
1YU-14335-00-00 |
from US $3.68 |
||
|
28
|
28
1YU-14371-00-00 Plunger, Starter |
1YU-14371-00-00 |
from US $17 |
||
