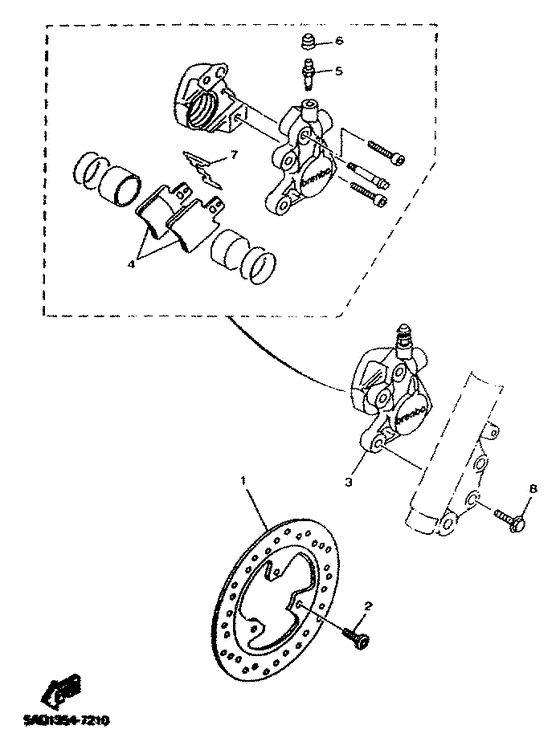

Front brake caliper Diagram Yamaha YN50 NEO'S
- Year
- 2001
- Colour
- New Silver Dust (NSD; 003H)
- Model code
- 5MR5
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5AD-F5831-00-00
Disc, Brake
|
5AD-F5831-00-00 |
— | ||
|
02
|
02
901-49088-14-00
Bolt, Hex. Socket Button
|
901-49088-14-00 |
— | ||
| replacements | |||||
|
02
|
02
901-11088-34-00 Bolt, Hex. Socket Button |
901-11088-34-00 |
from US $1.70 |
||
|
02
|
02
90111-08084-00 Bolt,hex. Socket Button |
90111-08084-00 |
from US $5.81 |
||
|
03
|
03
5KK-F580T-00-00
Caliper Assy (Left)
|
5KK-F580T-00-00 |
— | ||
| replacement | |||||
|
03
|
03
5ME-F580T-40-00
Caliper Assy (Left)
|
5ME-F580T-40-00 |
— | ||
|
04
|
04
5ME-F5811-00-00
Pad, Caliper 2
|
5ME-F5811-00-00 |
— | ||
| replacement | |||||
|
04
|
04
5MF-F5811-00-00 Pad, Caliper 2 |
5MF-F5811-00-00 |
US $66.13 |
||
|
05
|
05
4CU-F5824-00-00 Screw, Breed |
4CU-F5824-00-00 |
from US $14.88 |
||
|
06
|
06
4CU-F5825-00-00 Cap |
4CU-F5825-00-00 |
from US $2.38 |
||
|
07
|
07
4CU-F5919-00-00 Support, Pad Assy |
4CU-F5919-00-00 |
US $29.83 |
||
|
08
|
08
95821-08030-00 Bolt, Flange |
95821-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
