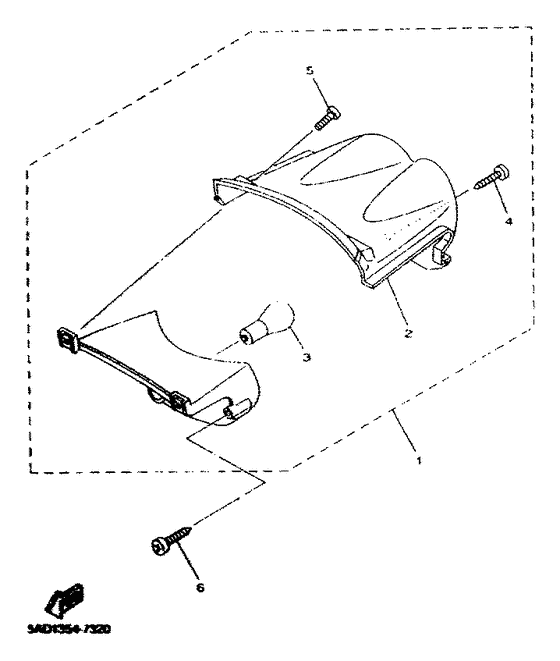

Taillight Diagram Yamaha YN50 NEO'S
- Year
- 2001
- Colour
- New Silver Dust (NSD; 003H)
- Model code
- 5MR5
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5AD-H4700-00-00
Taillight Assy
|
5AD-H4700-00-00 |
— | ||
|
02
|
02
5AD-H4721-00-00
Lens, Taillight
|
5AD-H4721-00-00 |
— | ||
|
03
|
03
4BA-H4714-00-00
Bulb (P21/5W)
|
4BA-H4714-00-00 |
— | ||
|
04
|
04
5AD-H3333-00-00
Screw, Lens Fitting
|
5AD-H3333-00-00 |
— | ||
|
05
|
05
9850M-04012-00
Screw, Pan Head
|
9850M-04012-00 |
— | ||
|
06
|
06
9770M-50016-00
Screw, Tapping
|
9770M-50016-00 |
— |
