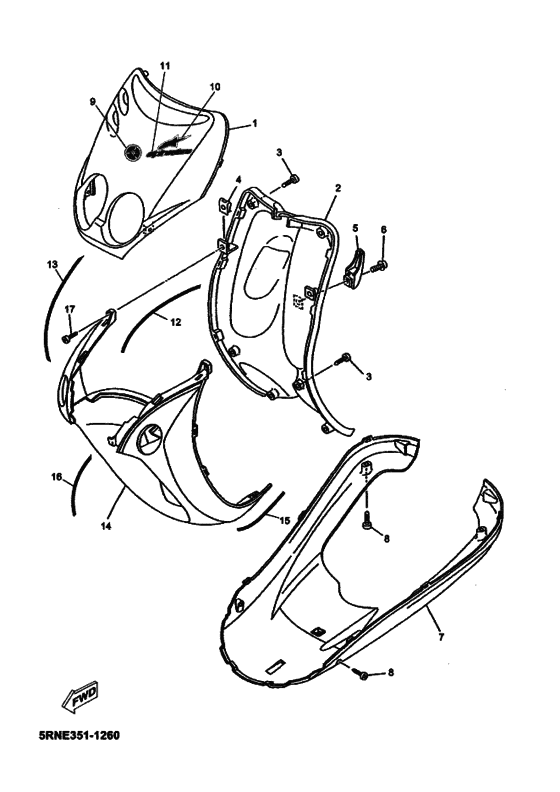

Leg shield Diagram Yamaha YN50 NEO'S
- Year
- 2002
- Colour
- Bluish Black Cocktail 2 (BSC2; 0703)
- Model code
- 5RNJ
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5AD-F8311-01-PF
Leg Shield 1
UR BLUISH BLACK COCKTAIL 2 |
5AD-F8311-01-PF |
— | ||
|
2
|
2
5AD-F8312-00-00
Leg Shield 2
YAMAHA BLACK |
5AD-F8312-00-00 |
— | ||
|
3
|
3
9770M-50016-00
Screw, Tapping
|
9770M-50016-00 |
— | ||
|
4
|
4
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
5
|
5
5AD-F8379-00-00
Hook
YAMAHA BLACK |
5AD-F8379-00-00 |
— | ||
|
6
|
6
90159-06816-00
Screw, With Washer
|
90159-06816-00 |
— | ||
|
7
|
7
5KK-F8385-10-00
Cover, Lower
|
5KK-F8385-10-00 |
— | ||
|
8
|
8
9770M-50016-00
Screw, Tapping
|
9770M-50016-00 |
— | ||
|
9
|
9
5DS-F8368-00-00
Emblem
|
5DS-F8368-00-00 |
— | ||
|
10
|
10
5RN-F8315-R0-00
Emblem
|
5RN-F8315-R0-00 |
— | ||
|
11
|
11
5RN-F832B-R0-00
Emblem 1
|
5RN-F832B-R0-00 |
— | ||
|
12
|
12
5RN-F832K-R0-00
Graphic 12
12 |
5RN-F832K-R0-00 |
— | ||
|
13
|
13
5RN-F832L-R0-00
Graphic 13
13 |
5RN-F832L-R0-00 |
— | ||
|
14
|
14
5AD-F1519-01-PF
Mole, Fender
UR BLUISH BLACK COCKTAIL 2 |
5AD-F1519-01-PF |
— | ||
|
15
|
15
5RN-F1579-R0-00
Graphic 2
|
5RN-F1579-R0-00 |
— | ||
|
16
|
16
5RN-F1599-R0-00
Graphic 3
|
5RN-F1599-R0-00 |
— | ||
|
17
|
17
9770M-50016-00
Screw, Tapping
|
9770M-50016-00 |
— |
