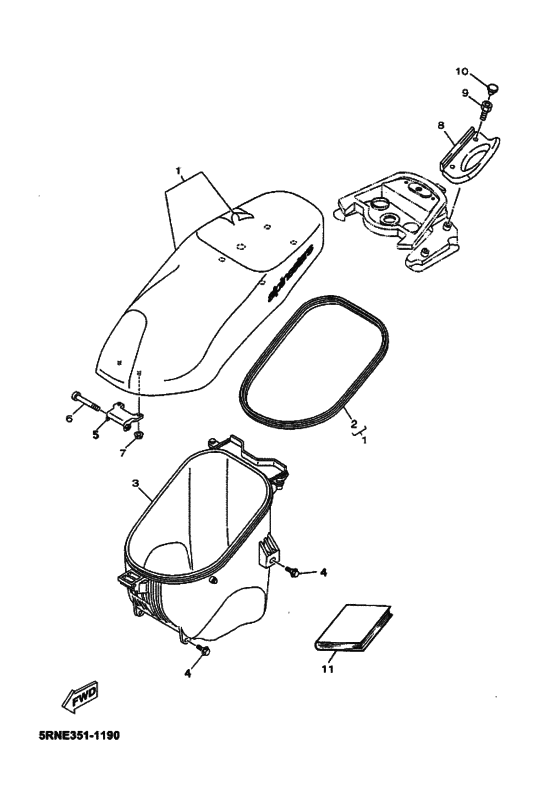

Seat Diagram Yamaha YN50 NEO'S
- Year
- 2002
- Colour
- Bluish Black Cocktail 2 (BSC2; 0703)
- Model code
- 5RNJ
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5RN-F4730-R0-00
Double Seat Assy
|
5RN-F4730-R0-00 |
— | ||
|
2
|
2
5AD-F475M-00-00
Seal
|
5AD-F475M-00-00 |
— | ||
|
3
|
3
5AD-F473R-01-00
Box 1
|
5AD-F473R-01-00 |
— | ||
|
4
|
4
90109-06X05-00 Bolt |
90109-06X05-00 |
US $8.08 |
||
|
5
|
5
5AD-F4726-00-00
Hinge, Seat
|
5AD-F4726-00-00 |
— | ||
|
6
|
6
5AD-F4727-00-00
Pin, Seat Fitting
|
5AD-F4727-00-00 |
— | ||
|
7
|
7
90179-06403-00 Nut (21W) |
90179-06403-00 |
from US $1.70 |
||
|
8
|
8
5RN-F1165-00-3C
Handle, Standing
UR LIGHT YELLOWISH GRAY ME |
5RN-F1165-00-3C |
— | ||
|
9
|
9
90110-08X00-00 Bolt, Hexagon Socket Head |
90110-08X00-00 |
US $2.13 |
||
|
10
|
10
5AD-F3469-00-00
Cap, Bolt
|
5AD-F3469-00-00 |
— | ||
|
11
|
11
5RN-F8199-E0-00
Manual,owner's
UR SPANISH |
5RN-F8199-E0-00 |
— | ||
| replacement | |||||
|
11
|
11
5RN-F8199-E1-00
O/m Yn50 Neo's '02 English
UR SPANISH |
5RN-F8199-E1-00 |
— | ||
