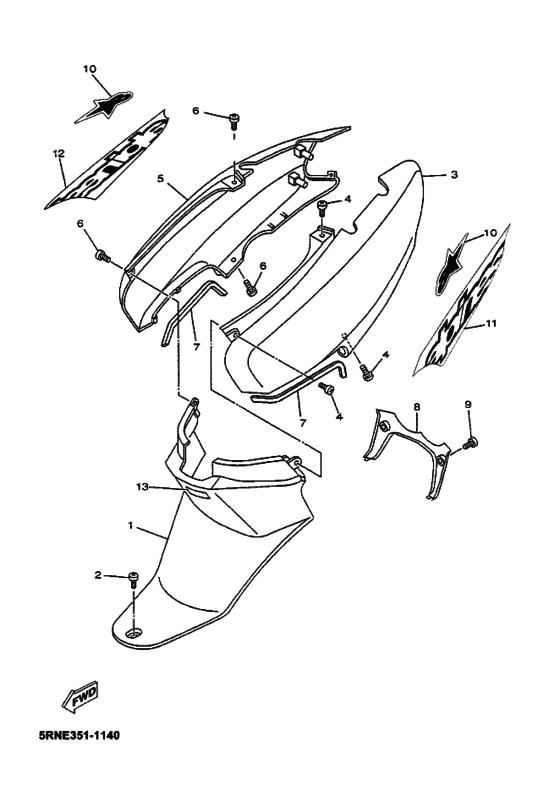

Side cover Diagram Yamaha YN50 NEO'S
- Year
- 2002
- Colour
- Bluish Black Cocktail 2 (BSC2; 0703)
- Model code
- 5RNJ
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YN50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5AD-F1711-00-00
Cover, Side 1
YAMAHA BLACK |
5AD-F1711-00-00 |
— | ||
|
2
|
2
90149-06184-00 Screw, Binding |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
2
|
2
90149-06306-00 Screw |
90149-06306-00 |
from US $2 |
||
|
3
|
3
5AD-F1721-01-PF
Cover, Side 2
UR BLUISH BLACK COCKTAIL 2 |
5AD-F1721-01-PF |
— | ||
|
4
|
4
9770M-50016-00
Screw, Tapping
|
9770M-50016-00 |
— | ||
|
5
|
5
5AD-F1731-00-PF
Cover, Side 3
UR BLUISH BLACK COCKTAIL 2 |
5AD-F1731-00-PF |
— | ||
|
6
|
6
9770M-50016-00
Screw, Tapping
|
9770M-50016-00 |
— | ||
|
7
|
7
5AD-F1717-00-00
Damper
|
5AD-F1717-00-00 |
— | ||
|
8
|
8
5AD-F171N-00-PF
Mole, Side Cover 3
UR BLUISH BLACK COCKTAIL 2 |
5AD-F171N-00-PF |
— | ||
|
9
|
9
9770M-50016-00
Screw, Tapping
|
9770M-50016-00 |
— | ||
|
10
|
10
5RN-F173E-R0-00
Graphic 1
|
5RN-F173E-R0-00 |
— | ||
|
11
|
11
5RN-F173F-R0-00
Graphic 2
|
5RN-F173F-R0-00 |
— | ||
|
12
|
12
5RN-F174G-R0-00
Graphic 3
|
5RN-F174G-R0-00 |
— | ||
|
13
|
13
5DS-F415E-10-00
Label, Caution
|
5DS-F415E-10-00 |
— | ||
