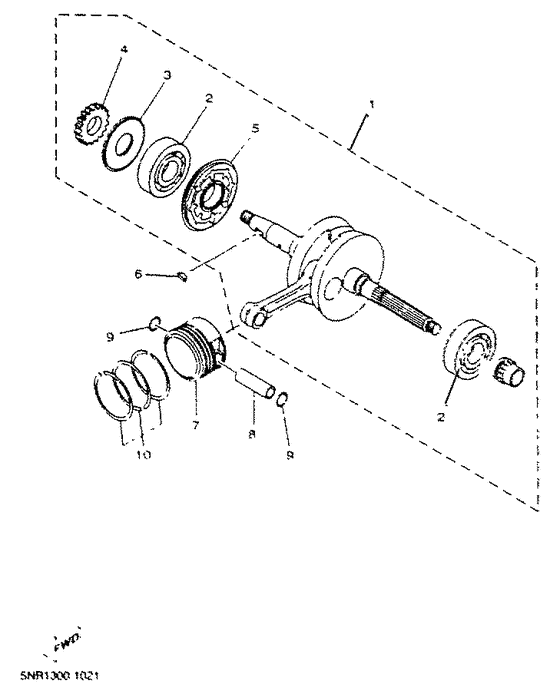

Crankshaft & Piston Diagram Yamaha YP150 Majesty
- Year
- 2001
- Model code
- 5NS3
- Sales region
- England (999)
- Engine Capacity
- 150
- Model
- YP150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5KD-E1400-02-00
Crankshaft Assy
|
5KD-E1400-02-00 |
— | ||
| replacement | |||||
|
01
|
01
5KD-E1400-10-00
Crankshaft Assy
|
5KD-E1400-10-00 |
— | ||
|
02
|
02
93306-305Y9-00 Bearing |
93306-305Y9-00 |
US $25.08 |
||
| replacement | |||||
|
02
|
02
93306-30536-00 Bearing (8R9) |
93306-30536-00 |
from US $25.08 |
||
|
03
|
03
3UH-E1445-00-00 Spacer |
3UH-E1445-00-00 |
US $7.49 |
||
|
04
|
04
5DS-E3324-00-00
Gear, Pump Drive
|
5DS-E3324-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
5DS-13451-00-00 Filter,rotary |
5DS-13451-00-00 |
US $97.54 |
||
|
06
|
06
902-80030-45-00
Key, Woodruff
|
902-80030-45-00 |
— | ||
| replacement | |||||
|
06
|
06
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
07
|
07
5KD-11631-00-A0 Piston (Std)(ur std) |
5KD-11631-00-A0 |
US $81.75 |
||
|
07
|
07
5KD-11635-00-00
Piston (0.25Mm O/s)
|
5KD-11635-00-00 |
— | ||
|
07
|
07
5KD-11636-00-00
Piston (0.50Mm O/s)
|
5KD-11636-00-00 |
— | ||
|
08
|
08
5KD-11633-00-00 Pin, Piston |
5KD-11633-00-00 |
US $28.57 |
||
|
09
|
09
93450-16X01-00
Circlip
|
93450-16X01-00 |
— | ||
|
10
|
10
5KD-11603-00-00
Piston Ring Set (Std)
(ur std) |
5KD-11603-00-00 |
— | ||
|
10
|
10
5KD-11604-00-00
Piston Ring Set (0.25Mm O/s)
|
5KD-11604-00-00 |
— | ||
|
10
|
10
5KD-11605-00-00
Piston Ring Set (0.50Mm O/s)
|
5KD-11605-00-00 |
— | ||
