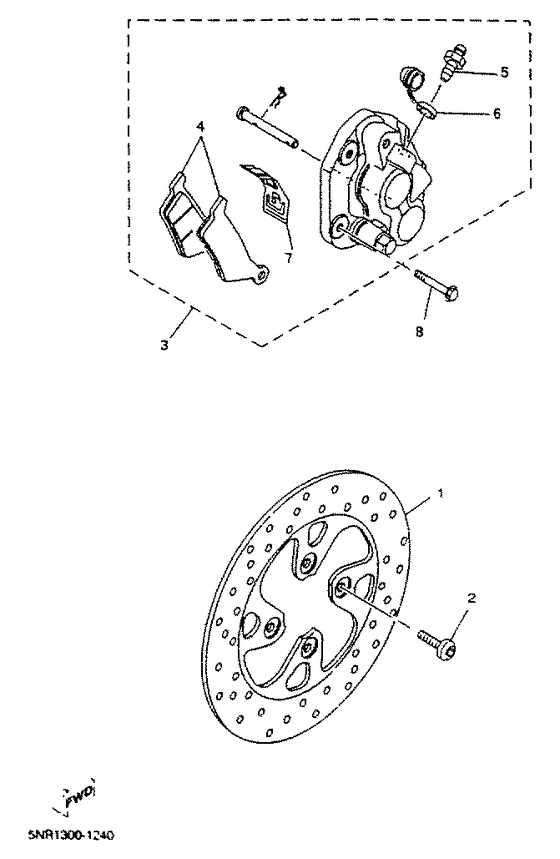

Front brakecaliper Diagram Yamaha YP150 Majesty
- Year
- 2001
- Model code
- 5NS3
- Sales region
- England (999)
- Engine Capacity
- 150
- Model
- YP150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5DS-F5831-00-00
Disc, Brake (Right)
|
5DS-F5831-00-00 |
— | ||
|
02
|
02
901-49088-14-00
Bolt, Hex. Socket Button
|
901-49088-14-00 |
— | ||
| replacements | |||||
|
02
|
02
901-11088-34-00 Bolt, Hex. Socket Button |
901-11088-34-00 |
from US $1.70 |
||
|
02
|
02
90111-08084-00 Bolt,hex. Socket Button |
90111-08084-00 |
from US $5.81 |
||
|
03
|
03
5NR-F580T-00-00
Caliper Assy (Left)
|
5NR-F580T-00-00 |
— | ||
| replacement | |||||
|
03
|
03
5NR-F580T-10-00
Caliper Assy (Left
|
5NR-F580T-10-00 |
— | ||
|
04
|
04
5NR-F5811-00-00
Pad, Caliper 2
|
5NR-F5811-00-00 |
— | ||
| replacement | |||||
|
04
|
04
5NR-F5811-20-00
Pad, Caliper 2
|
5NR-F5811-20-00 |
— | ||
|
05
|
05
5DS-F5824-00-00
･screw, Breed
|
5DS-F5824-00-00 |
— | ||
|
06
|
06
5DS-F5825-00-00
Cap
|
5DS-F5825-00-00 |
— | ||
|
07
|
07
5DS-F5919-00-00 Support, Pad |
5DS-F5919-00-00 |
from US $15.39 |
||
|
08
|
08
9582L-08030-00
Bolt, Flange
|
9582L-08030-00 |
— | ||
