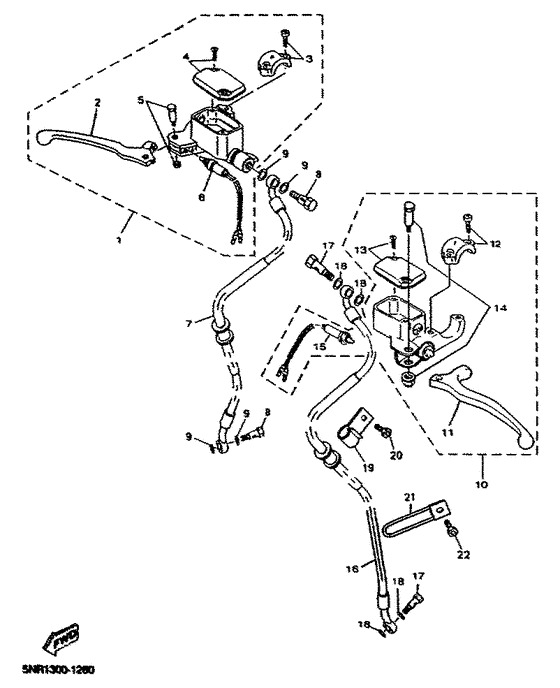

Front master cylinder Diagram Yamaha YP150 Majesty
- Year
- 2001
- Model code
- 5NS3
- Sales region
- England (999)
- Engine Capacity
- 150
- Model
- YP150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5NR-F583T-00-00
Master Cylinder Assy
|
5NR-F583T-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5NR-F583T-11-00
Master Cylinder Assy
|
5NR-F583T-11-00 |
— | ||
|
02
|
02
5DS-H3922-01-00
Lever 2
|
5DS-H3922-01-00 |
— | ||
|
03
|
03
4SB-F5867-10-00
Bracket, Master Cylinder
|
4SB-F5867-10-00 |
— | ||
|
04
|
04
5NR-F5852-00-00
Cap, Reservoir
|
5NR-F5852-00-00 |
— | ||
|
05
|
05
4SB-H3945-00-00
Bolt, Lever
|
4SB-H3945-00-00 |
— | ||
|
06
|
06
5AD-H3980-01-00 Stop Switch Asy |
5AD-H3980-01-00 |
US $34.70 |
||
| replacement | |||||
|
06
|
06
5XL-H3980-00-00 Front Stop Switch |
5XL-H3980-00-00 |
US $36.95 |
||
|
07
|
07
5NR-F5872-00-00
Hose, Brake 1
|
5NR-F5872-00-00 |
— | ||
| replacement | |||||
|
07
|
07
5XL-F5872-00-00
Hose, Brake 1
|
5XL-F5872-00-00 |
— | ||
|
08
|
08
2RN-F5877-00-00
Bolt, Oil 1
|
2RN-F5877-00-00 |
— | ||
|
09
|
09
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
09
|
09
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
10
|
10
5NR-F583V-00-00
Rr. Master Cylinder Assy
|
5NR-F583V-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5NR-F583V-11-00
Rr. Master Cylinder Assy
|
5NR-F583V-11-00 |
— | ||
|
11
|
11
5DS-H3922-01-00
Lever 2
|
5DS-H3922-01-00 |
— | ||
|
12
|
12
4SB-F5867-10-00
Bracket, Master Cylinder
|
4SB-F5867-10-00 |
— | ||
|
13
|
13
5NR-F5852-00-00
Cap, Reservoir
|
5NR-F5852-00-00 |
— | ||
|
14
|
14
4SB-H3945-00-00
Bolt, Lever
|
4SB-H3945-00-00 |
— | ||
|
15
|
15
5AD-H3980-01-00 Stop Switch Asy |
5AD-H3980-01-00 |
US $34.70 |
||
| replacement | |||||
|
15
|
15
5XL-H3980-00-00 Front Stop Switch |
5XL-H3980-00-00 |
US $36.95 |
||
|
16
|
16
5NR-F5873-00-00
Hose, Brake 2
|
5NR-F5873-00-00 |
— | ||
|
17
|
17
2RN-F5877-00-00
Bolt, Oil 1
|
2RN-F5877-00-00 |
— | ||
|
18
|
18
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
18
|
18
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
19
|
19
5NR-F5876-10-00
Holder, Brake Hose 2
|
5NR-F5876-10-00 |
— | ||
|
20
|
20
9760L-06216-00 Screw, Pan Head |
9760L-06216-00 |
from US $0.14 |
||
|
21
|
21
5NR-F6132-00-00
Guide, Cable 2
|
5NR-F6132-00-00 |
— | ||
|
22
|
22
9760L-06216-00 Screw, Pan Head |
9760L-06216-00 |
from US $0.14 |
||
