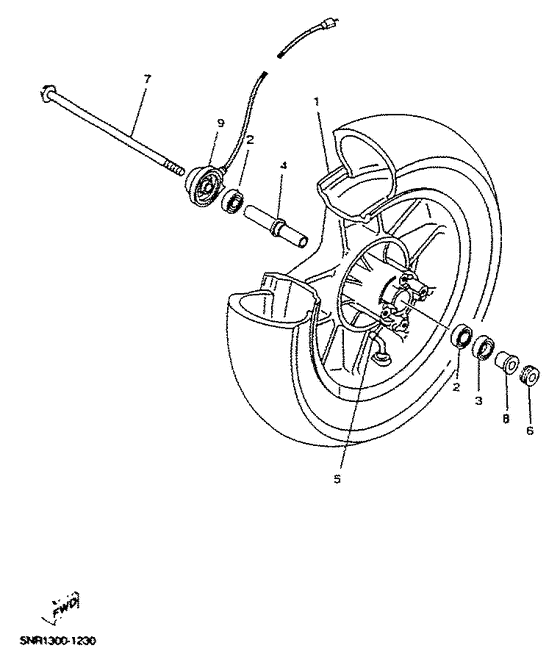

Front wheel Diagram Yamaha YP150 Majesty
- Year
- 2001
- Model code
- 5NS3
- Sales region
- England (999)
- Engine Capacity
- 150
- Model
- YP150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5DS-F5168-00-00
Cast Wheel, Front
|
5DS-F5168-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5DS-F5160-00-00
Cast Wheel, Front
|
5DS-F5160-00-00 |
— | ||
|
02
|
02
93306-201Y2-00 Bearing |
93306-201Y2-00 |
from US $4.55 |
||
| replacements | |||||
|
02
|
02
933-06201-X2-00 Bearing |
933-06201-X2-00 |
from US $6.17 |
||
|
02
|
02
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $12.12 |
||
|
02
|
02
93306-20117-00 Bearing |
93306-20117-00 |
from US $18.14 |
||
|
03
|
03
93102-18895-00
Oil Seal
|
93102-18895-00 |
— | ||
|
04
|
04
5DS-F5117-00-00
Spacer, Bearing
|
5DS-F5117-00-00 |
— | ||
|
05
|
05
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
06
|
06
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $9.02 |
||
|
07
|
07
22F-25381-10-00 Axle, Wheel |
22F-25381-10-00 |
US $27.32 |
||
| replacement | |||||
|
07
|
07
22F-25381-00-00 Axle, Wheel |
22F-25381-00-00 |
US $27.32 |
||
|
08
|
08
5DS-F5105-00-00
Spacer
|
5DS-F5105-00-00 |
— | ||
|
09
|
09
5NR-H3756-00-00
Sensor, Unit
|
5NR-H3756-00-00 |
— | ||
| replacement | |||||
|
09
|
09
5NR-H3756-10-00
Sensor, Unit
|
5NR-H3756-10-00 |
— | ||
