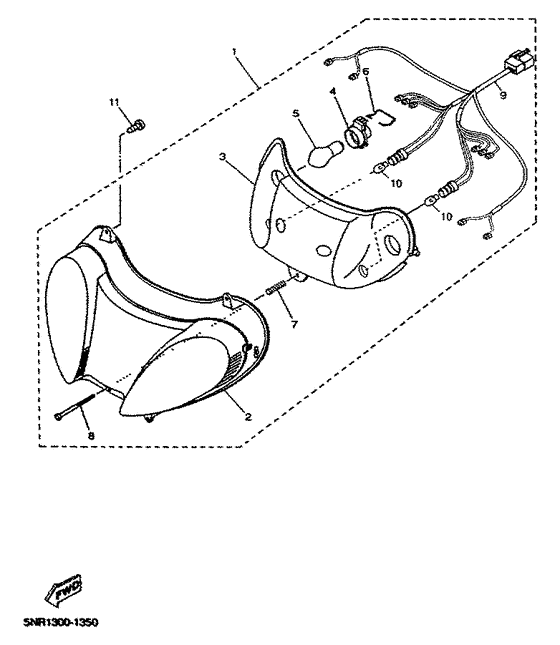

Headlight Diagram Yamaha YP150 Majesty
- Year
- 2001
- Model code
- 5NS3
- Sales region
- England (999)
- Engine Capacity
- 150
- Model
- YP150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5NR-H4310-00-00
Headlight Unit Assy
|
5NR-H4310-00-00 |
— | ||
|
02
|
02
5DS-H4103-00-00
Headlight Unit Assy
|
5DS-H4103-00-00 |
— | ||
|
03
|
03
5NR-H4323-00-00
Reflector
|
5NR-H4323-00-00 |
— | ||
|
04
|
04
5DU-H4112-00-00
Socket
|
5DU-H4112-00-00 |
— | ||
|
05
|
05
5AD-H4314-00-00
Bulb 12V-25/25W
|
5AD-H4314-00-00 |
— | ||
|
06
|
06
3WG-H4324-00-00
Spring, Reflector
|
3WG-H4324-00-00 |
— | ||
|
07
|
07
5AD-H4332-00-00
Spring, Screw
|
5AD-H4332-00-00 |
— | ||
|
08
|
08
90157-04X02-00
Screw, Pan Head
|
90157-04X02-00 |
— | ||
|
09
|
09
5NR-H4340-00-00
Socket Cord Assy 1
|
5NR-H4340-00-00 |
— | ||
|
10
|
10
5DS-H4744-00-00
Bulb (12V-5W)
|
5DS-H4744-00-00 |
— | ||
| replacements | |||||
|
10
|
10
5DS-H4744-10-00 Bulb |
5DS-H4744-10-00 |
US $6.09 |
||
|
10
|
10
3WW-H4347-00-00
Bulb
|
3WW-H4347-00-00 |
— | ||
|
11
|
11
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
