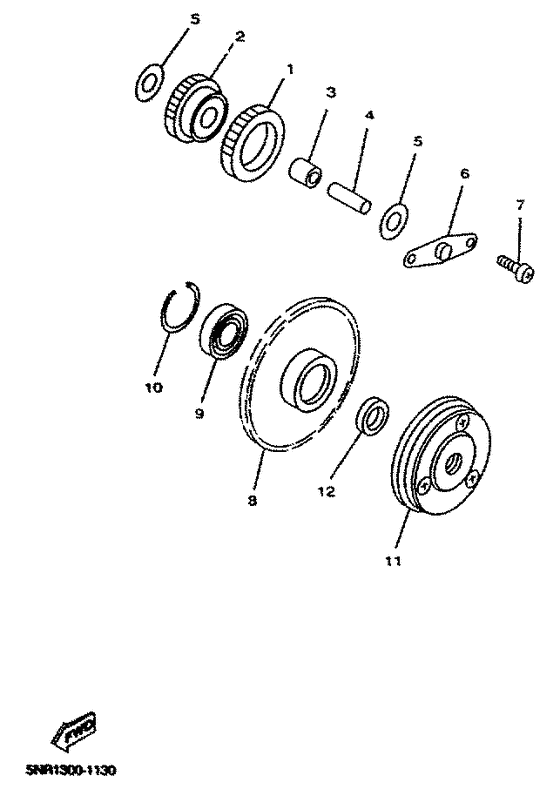

Starter Diagram Yamaha YP150 Majesty
- Year
- 2001
- Model code
- 5NS3
- Sales region
- England (999)
- Engine Capacity
- 150
- Model
- YP150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UH-E5512-00-00
Gear, Idler 1
|
3UH-E5512-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3UH-E5650-00-00
Idle Gear Assy
|
3UH-E5650-00-00 |
— | ||
|
02
|
02
3UH-E5517-00-00
Gear, Idler 2
|
3UH-E5517-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3UH-E5650-00-00
Idle Gear Assy
|
3UH-E5650-00-00 |
— | ||
|
03
|
03
93315-110Y0-00
Bearing
|
93315-110Y0-00 |
— | ||
|
04
|
04
5DS-E5521-00-00
Shaft 1
|
5DS-E5521-00-00 |
— | ||
|
05
|
05
90201-108A3-00 Washer, Plate |
90201-108A3-00 |
from US $1.98 |
||
|
06
|
06
5DS-E5532-00-00
Plate, Idle Gear
|
5DS-E5532-00-00 |
— | ||
|
07
|
07
90149-06X03-00
Screw
|
90149-06X03-00 |
— | ||
|
08
|
08
5DS-15524-00-00 Wheel, Starter |
5DS-15524-00-00 |
US $88.35 |
||
|
09
|
09
93306-003Y9-00 Bearing |
93306-003Y9-00 |
US $26.64 |
||
| replacements | |||||
|
09
|
09
933-06003-YW-00
Brg,r-B 6000 26Mm 19G Nt
|
933-06003-YW-00 |
— | ||
|
09
|
09
93306-00316-00 Bearing |
93306-00316-00 |
from US $20.54 |
||
|
10
|
10
93450-35015-00 Circlip |
93450-35015-00 |
from US $2.25 |
||
| replacement | |||||
|
10
|
10
93450-35163-00 Circlip |
93450-35163-00 |
from US $5.22 |
||
|
11
|
11
4KL-15570-00-00 Starter Clutch Assy |
4KL-15570-00-00 |
from US $103.68 |
||
|
12
|
12
90387-168S2-00 Collar |
90387-168S2-00 |
US $9.78 |
||
