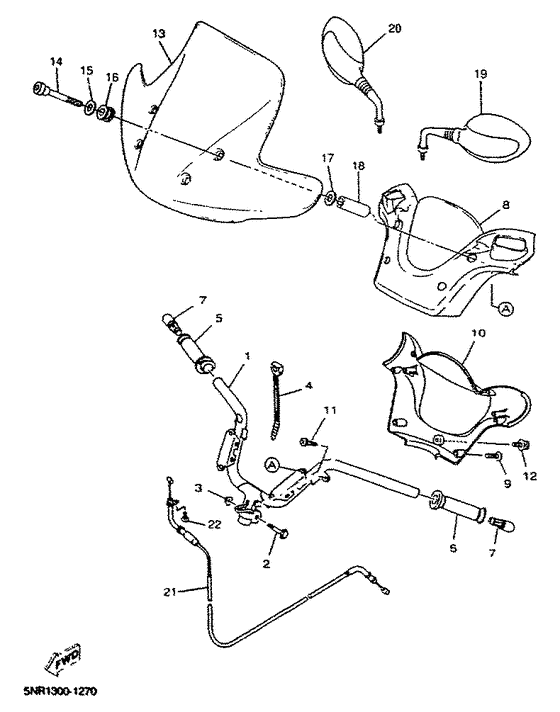

Steering handle & cable Diagram Yamaha YP150 Majesty
- Year
- 2001
- Model code
- 5NS3
- Sales region
- England (999)
- Engine Capacity
- 150
- Model
- YP150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5NR-F6110-00-00
Handle Comp
|
5NR-F6110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5NR-F6110-01-00
Handle Comp
|
5NR-F6110-01-00 |
— | ||
|
02
|
02
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
03
|
03
90185-10840-00
Tuerca
|
90185-10840-00 |
— | ||
| replacement | |||||
|
03
|
03
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
04
|
04
5AD-H2594-00-00
Clamp
|
5AD-H2594-00-00 |
— | ||
| replacement | |||||
|
04
|
04
90464-90X00-00
Clamp
|
90464-90X00-00 |
— | ||
|
05
|
05
5HT-F6240-00-00
Grip Assy
|
5HT-F6240-00-00 |
— | ||
|
06
|
06
5DS-F6241-00-00
Grip
|
5DS-F6241-00-00 |
— | ||
|
07
|
07
5HT-F6246-00-00
End, Grip
|
5HT-F6246-00-00 |
— | ||
| replacement | |||||
|
07
|
07
5HT-F6246-10-00
End, Grip
|
5HT-F6246-10-00 |
— | ||
|
08
|
08
5NR-F6143-00-4B
Cover, Handlebar Upper 1
|
5NR-F6143-00-4B |
— | ||
|
09
|
09
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
10
|
10
5DS-F6145-00-00
Cover, Handlebar Upper 2
|
5DS-F6145-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5DS-F6145-01-00
Cover, Handlebar U
|
5DS-F6145-01-00 |
— | ||
|
11
|
11
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
12
|
12
90159-06X00-00
Screw, With Washer
|
90159-06X00-00 |
— | ||
|
13
|
13
5NR-F6234-00-00
Screen
|
5NR-F6234-00-00 |
— | ||
|
14
|
14
90109-06X06-00
Bolt
|
90109-06X06-00 |
— | ||
|
15
|
15
90201-10X06-00
Washer, Plate
|
90201-10X06-00 |
— | ||
|
16
|
16
90480-14X00-00
Grommet
|
90480-14X00-00 |
— | ||
|
17
|
17
90201-06821-00
Washer, Plate
|
90201-06821-00 |
— | ||
|
18
|
18
90387-07X01-00
Collar
|
90387-07X01-00 |
— | ||
|
19
|
19
5DS-F6280-00-00
Rear View Mirror Assy (Left)
|
5DS-F6280-00-00 |
— | ||
| replacement | |||||
|
19
|
19
5DS-F6280-10-00
Rear View Mirror Assy(Lef
|
5DS-F6280-10-00 |
— | ||
|
20
|
20
5DS-F6290-00-00
Rear View Mirror Assy (Right)
|
5DS-F6290-00-00 |
— | ||
| replacement | |||||
|
20
|
20
5DS-F6290-10-00
Rear View Mirror Assy(Rig
|
5DS-F6290-10-00 |
— | ||
|
21
|
21
5DS-F6311-00-00
Cable, Throttle 1
|
5DS-F6311-00-00 |
— | ||
|
22
|
22
9850M-05010-00 Screw, Pan Head |
9850M-05010-00 |
US $1.21 |
||
