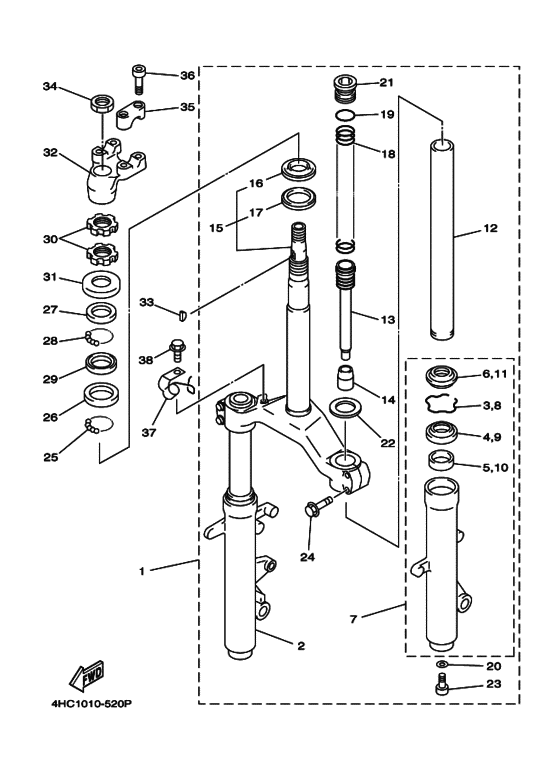

Steering 1 (- 021303) Diagram Yamaha YP250 Majesty
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4HC1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4HC-23100-00-00
Front Fork Assy
フロントフオークアセンブリ; 〜021303 |
4HC-23100-00-00 |
— | ||
|
2
|
2
4HC-23136-00-00
Tube, Outer 2
．チユーブ，アウタ ; ライト; （＊１） |
4HC-23136-00-00 |
— | ||
|
3
|
3
22W-23153-L0-00 Ring, Snap．．リング，スナツプ; |
22W-23153-L0-00 |
from US $4.62 |
||
|
4
|
4
51Y-23145-00-00 Oil Seal．．オイルシール; （＊２） |
51Y-23145-00-00 |
from US $10.91 |
||
| replacement | |||||
|
4
|
4
2UJ-23145-00-00 Oil Seal．．オイルシール; （＊２） |
2UJ-23145-00-00 |
from US $11.66 |
||
|
5
|
5
51Y-23125-00-00 Metal, Slide 1．．メタル，スライド １; |
51Y-23125-00-00 |
from US $11.33 |
||
|
6
|
6
51Y-23144-00-00 Seal, Dust．．シール，ダスト; |
51Y-23144-00-00 |
from US $11.05 |
||
| replacement | |||||
|
6
|
6
2UJ-23144-00-00 Seal, Dust．．シール，ダスト; |
2UJ-23144-00-00 |
from US $12.21 |
||
|
7
|
7
4HC-23126-00-00
Tube, Outer (L.h)
．チユーブ，アウタ １; |
4HC-23126-00-00 |
— | ||
|
8
|
8
22W-23153-L0-00 Ring, Snap．．リング，スナツプ; |
22W-23153-L0-00 |
from US $4.62 |
||
|
9
|
9
51Y-23145-00-00 Oil Seal．．オイルシール; |
51Y-23145-00-00 |
from US $10.91 |
||
| replacement | |||||
|
9
|
9
2UJ-23145-00-00 Oil Seal．．オイルシール; |
2UJ-23145-00-00 |
from US $11.66 |
||
|
10
|
10
51Y-23125-00-00 Metal, Slide 1．．メタル，スライド １; |
51Y-23125-00-00 |
from US $11.33 |
||
|
11
|
11
51Y-23144-00-00 Seal, Dust．．シール，ダスト; |
51Y-23144-00-00 |
from US $11.05 |
||
| replacement | |||||
|
11
|
11
2UJ-23144-00-00 Seal, Dust．．シール，ダスト; |
2UJ-23144-00-00 |
from US $12.21 |
||
|
12
|
12
4HC-23110-00-00
Inner Tube Comp.1
．インナチユーブコンプリート １; （＊３） |
4HC-23110-00-00 |
— | ||
|
13
|
13
4HC-23170-00-00
Cylinder Comp., Front Fork
．シリンダコンプリート，フロントフオーク; |
4HC-23170-00-00 |
— | ||
|
14
|
14
1W1-23173-L0-00 Taper Spindle．スピンドル，テーパ; |
1W1-23173-L0-00 |
from US $24.65 |
||
|
15
|
15
4HC-23340-00-00 Under Bracket Comp．アンダブラケツトコンプリート; |
4HC-23340-00-00 |
US $486.95 |
||
|
16
|
16
156-23411-00-00 Race, Ball 1．．レース，ボール １; |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
16
|
16
B6E-23411-00-00 Race, Ball 1．．レース，ボール １; |
B6E-23411-00-00 |
from US $9.65 |
||
|
17
|
17
164-23462-00-00 Seal, Dust．．シール，ステアリング; |
164-23462-00-00 |
from US $4.72 |
||
|
18
|
18
4HC-23141-00-00
Spring, Front Fork
．スプリング，フロントフオーク; （＊４） |
4HC-23141-00-00 |
— | ||
|
19
|
19
3J2-23114-00-00 O-Ring．Ｏ−リング; |
3J2-23114-00-00 |
from US $3.54 |
||
|
20
|
20
509-23158-L0-00 Gasket．ガスケツト; |
509-23158-L0-00 |
from US $4.03 |
||
|
21
|
21
4HC-23111-00-00 Bolt, Cap．ボルト，キヤツプ; |
4HC-23111-00-00 |
US $28.62 |
||
| replacement | |||||
|
21
|
21
5RB-23111-00-00 Bolt, Cap．ボルト，キヤツプ; |
5RB-23111-00-00 |
from US $28.62 |
||
|
22
|
22
3DM-23149-10-00 Washer, Spring Upper．ワツシヤ，スプリングアツパ; |
3DM-23149-10-00 |
from US $4.96 |
||
|
23
|
23
278-23181-50-00
Bolt, Hexagon Socket Head
．ボルト，ヘキサゴンソケツトヘツド; |
278-23181-50-00 |
— | ||
| replacement | |||||
|
23
|
23
3D8-23181-00-00 Bolt, Hexagon Socket Head．ボルト，ヘキサゴンソケツトヘツド; |
3D8-23181-00-00 |
from US $5.41 |
||
|
24
|
24
95027-08040-00 Bolt, Flange．ボルト，フランジ; |
95027-08040-00 |
from US $1.42 |
||
|
25
|
25
93501-04011-00 Ballボール; |
93501-04011-00 |
from US $1.70 |
||
|
26
|
26
156-23412-00-00 Race, Ball 2レース，ボール ２; |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
26
|
26
B6E-23412-00-00 Race, Ball 2レース，ボール ２; |
B6E-23412-00-00 |
from US $11.83 |
||
|
27
|
27
22F-23411-01-00 Race, Ball 1レース，ボール １; |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
27
|
27
BP2-23411-00-00 Race, Ball 1レース，ボール １; |
BP2-23411-00-00 |
from US $9.71 |
||
|
28
|
28
93503-16010-00 Ball 3-16ボール; |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
28
|
28
93503-16003-00 Ballボール; |
93503-16003-00 |
from US $1.39 |
||
|
29
|
29
22F-23412-01-00 Race, Ball 2レース，ボール ２; |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
29
|
29
BP2-23412-00-00 Race, Ball 2レース，ボール ２; |
BP2-23412-00-00 |
from US $8.74 |
||
|
30
|
30
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
30
|
30
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
30
|
30
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
31
|
31
3VP-23416-00-00 Cover, Ball Race 2カバー，ボールレース ２; |
3VP-23416-00-00 |
US $2.83 |
||
|
32
|
32
4HC-23442-00-00 Holder, Handle Lowerホルダ，ハンドルロワー; |
4HC-23442-00-00 |
US $160.69 |
||
| replacement | |||||
|
32
|
32
1B9-F3442-00-00
Holder, Handle Lower
ホルダ，ハンドルロワー; |
1B9-F3442-00-00 |
— | ||
|
33
|
33
90280-03017-00 Key, Woodruffキー，ウツドラフ; |
90280-03017-00 |
from US $1.81 |
||
|
34
|
34
90170-20386-00 Nut |
90170-20386-00 |
from US $4.25 |
||
|
35
|
35
4H7-23441-00-98 Holder, Handle Upperツヤケシ クロ |
4H7-23441-00-98 |
from US $28.13 |
||
| replacement | |||||
|
35
|
35
4H7-23441-01-98 Holder, Handle Upperツヤケシ クロ |
4H7-23441-01-98 |
from US $29.89 |
||
|
36
|
36
913-17080-30-00 Boltボルト，ソケツトヘツド; |
913-17080-30-00 |
from US $1.07 |
||
|
37
|
37
4HC-25875-00-00 Holder, Brake Hose 1ホルダ，ブレーキホース １; |
4HC-25875-00-00 |
US $12.33 |
||
| replacement | |||||
|
37
|
37
4HC-25875-01-00 Holder, Brake Hose 1ホルダ，ブレーキホース １; |
4HC-25875-01-00 |
US $12.33 |
||
|
38
|
38
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
