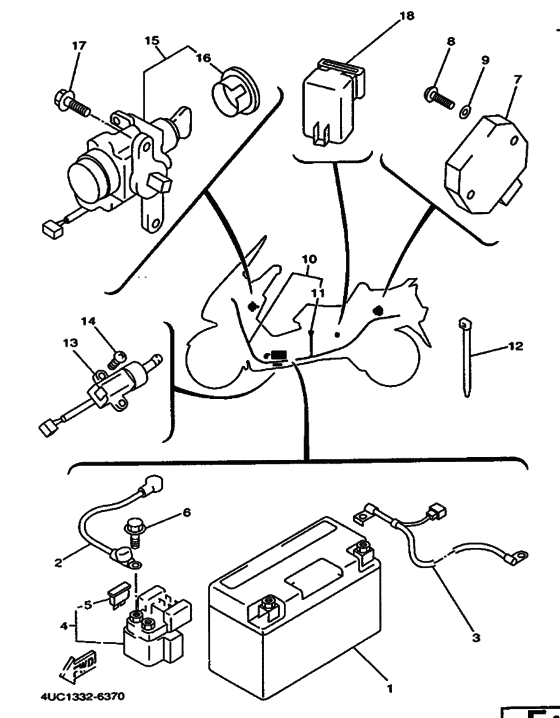

Electrical 1 Diagram Yamaha YP250 Majesty
- Year
- 1996
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4UC1
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4UC-82100-00-00
Battery Assy
|
4UC-82100-00-00 |
— | ||
| replacement | |||||
|
1
|
1
GT7-B4000-00-00 AT25X8-12 |
GT7-B4000-00-00 |
US $120.96 |
||
|
2
|
2
4HC-82115-00-00
Wire, Plus Lead
|
4HC-82115-00-00 |
— | ||
|
3
|
3
4HC-82116-00-00 Wire, Minus Lead |
4HC-82116-00-00 |
US $32.01 |
||
|
4
|
4
4FL-81940-00-00
Starter Relay Assy
|
4FL-81940-00-00 |
— | ||
| replacements | |||||
|
4
|
4
4FL-81940-02-00 Starter Relay Assy (Rc19-007) |
4FL-81940-02-00 |
US $91.94 |
||
|
4
|
4
4FL-81940-01-00 Starter Relay Assy |
4FL-81940-01-00 |
from US $64.26 |
||
|
5
|
5
2GH-82151-00-00 Fuse (20A)20A-BL |
2GH-82151-00-00 |
from US $2.13 |
||
| replacement | |||||
|
5
|
5
2GV-82151-00-00 Fuse (20A-Bl)20A-BL |
2GV-82151-00-00 |
from US $1.70 |
||
|
6
|
6
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
7
|
7
4HM-81960-00-00 Rectifier & Regulator Assembly |
4HM-81960-00-00 |
from US $135.81 |
||
| replacement | |||||
|
7
|
7
4HM-81960-01-00 Rectifier & Regulator Assembly |
4HM-81960-01-00 |
from US $125.33 |
||
|
8
|
8
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
10
|
10
4UC-82590-00-00
Wire Harness Assy
|
4UC-82590-00-00 |
— | ||
|
11
|
11
7LY-82151-00-00
Fuse (3A)
3A-BL |
7LY-82151-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3XW-82151-00-00
Fuse (3A-Bl)
3A-BL |
3XW-82151-00-00 |
— | ||
|
12
|
12
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
12
|
12
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
13
|
13
3LD-82566-50-00 Switch, Side Stand |
3LD-82566-50-00 |
from US $66.18 |
||
| replacement | |||||
|
13
|
13
3LD-82566-51-00 Switch, Side Stand |
3LD-82566-51-00 |
from US $56.36 |
||
|
14
|
14
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
14
|
14
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
15
|
15
4UC-82501-00-00
Main Switch Steering Lock
|
4UC-82501-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4UC-82501-12-00
Main Switch Steering Lock
|
4UC-82501-12-00 |
— | ||
|
16
|
16
4UC-82552-00-00
Cap, Switch
|
4UC-82552-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4UC-82552-10-00
Cap, Switch
|
4UC-82552-10-00 |
— | ||
|
17
|
17
90109-066A7-00
Bolt
|
90109-066A7-00 |
— | ||
|
18
|
18
4HC-81950-00-00 Relay Assy4HC-00 |
4HC-81950-00-00 |
from US $31.59 |
||
