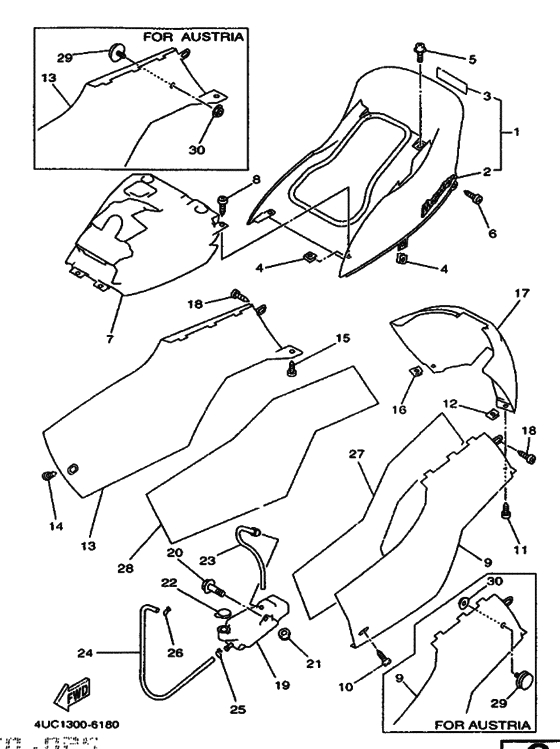

Side cover Diagram Yamaha YP250 Majesty
- Year
- 1996
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4UC1
- Sales region
- Europe (050)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4HC-Y2171-10-P0
Cover, Side 1
UR^DEEP RED COCKTAIL 2 |
4HC-Y2171-10-P0 |
— | ||
| replacement | |||||
|
1
|
1
4HC-21711-00-P0
Cover, Side 1
UR^DEEP RED COCKTAIL 2 |
4HC-21711-00-P0 |
— | ||
|
1
|
1
4HC-Y2171-10-4B Cover, Side 1UR^BLACK 2 |
4HC-Y2171-10-4B |
US $629.64 |
||
| replacement | |||||
|
1
|
1
4HC-21711-00-PA Cover, Side 1UR^BLACK 2 |
4HC-21711-00-PA |
US $629.64 |
||
|
1
|
1
4HC-Y2171-00-T9
Cover, Side 1
UR^COMTEITION SILVER |
4HC-Y2171-00-T9 |
— | ||
| replacement | |||||
|
1
|
1
4HC-21711-00-T9
Cover, Side 1
UR^COMTEITION SILVER |
4HC-21711-00-T9 |
— | ||
|
2
|
2
4HC-21781-00-00
Emblem 1
|
4HC-21781-00-00 |
— | ||
|
3
|
3
99237-00080-00 Emblem, YamahaUR FOR COMS |
99237-00080-00 |
from US $7.90 |
||
| replacement | |||||
|
3
|
3
992-47000-80-00 Emblem, YamahaUR FOR COMS |
992-47000-80-00 |
from US $7.76 |
||
|
3
|
3
992-36000-80-00
Emblem, Yamaha
UR FOR BL2,DRC2 |
992-36000-80-00 |
— | ||
| replacement | |||||
|
3
|
3
992-46000-80-00 Emblem (YAMAHA)UR FOR BL2,DRC2 |
992-46000-80-00 |
from US $9.15 |
||
|
4
|
4
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
5
|
5
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
6
|
6
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
7
|
7
4HC-21721-00-00
Cover, Side 2
|
4HC-21721-00-00 |
— | ||
|
8
|
8
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
9
|
9
4HC-2171L-01-00
Mole, Side Cover 1
UR FOR COMS |
4HC-2171L-01-00 |
— | ||
|
9
|
9
4UD-2171L-00-00
Mole, Side Cover 1
UR FOR COMS FOR AUT |
4UD-2171L-00-00 |
— | ||
|
9
|
9
4HC-2171L-11-00
Mole, Side Cover 1
UR FOR BL2.DRC2 |
4HC-2171L-11-00 |
— | ||
|
9
|
9
4UD-2171L-10-00
Mole, Side Cover 1
UR FOR BL2.DRC2 FOR AUT |
4UD-2171L-10-00 |
— | ||
|
10
|
10
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
11
|
11
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
13
|
13
4HC-2171M-01-00
Mole, Side Cover 2
UR FOR COMS |
4HC-2171M-01-00 |
— | ||
|
13
|
13
4UD-2171M-00-00
Mole, Side Cover 2
UR FOR COMS FOR AUT |
4UD-2171M-00-00 |
— | ||
|
13
|
13
4HC-2171M-11-00
Mole, Side Cover 2
UR FOR BL2.DRC2 |
4HC-2171M-11-00 |
— | ||
|
13
|
13
4UD-2171M-10-00
Mole, Side Cover 2
UR FOR BL2,DRC2 FOR AUT |
4UD-2171M-10-00 |
— | ||
|
14
|
14
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
15
|
15
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
16
|
16
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
17
|
17
4HC-2171N-00-00
Mole, Side Cover 3
UR FOR COMS |
4HC-2171N-00-00 |
— | ||
|
17
|
17
4HC-2171N-10-00
Mole, Side Cover 3
UR FOR BL2,DRC2 |
4HC-2171N-10-00 |
— | ||
|
18
|
18
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
19
|
19
4HC-21871-00-00
Tank, Recovery
|
4HC-21871-00-00 |
— | ||
|
20
|
20
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
20
|
20
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
21
|
21
90480-01288-00
Grommet
|
90480-01288-00 |
— | ||
|
22
|
22
1AA-21815-00-00 Cap |
1AA-21815-00-00 |
from US $6.40 |
||
|
23
|
23
4HC-21816-00-00
Pipe 1
|
4HC-21816-00-00 |
— | ||
|
24
|
24
4HC-21817-00-00 Pipe 2 |
4HC-21817-00-00 |
US $20.50 |
||
|
25
|
25
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
26
|
26
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
26
|
26
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
26
|
26
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
27
|
27
4HC-21778-01-00 Damper, Locating 1 |
4HC-21778-01-00 |
US $40.61 |
||
|
28
|
28
4HC-21779-01-00 Damper, Locating 2 |
4HC-21779-01-00 |
US $37.75 |
||
|
29
|
29
4AG-85111-00-00 Reflector, 1FOR AUT |
4AG-85111-00-00 |
from US $9.98 |
||
|
30
|
30
95707-06500-00 Nut, FlangeFOR AUT |
95707-06500-00 |
from US $1.12 |
||
