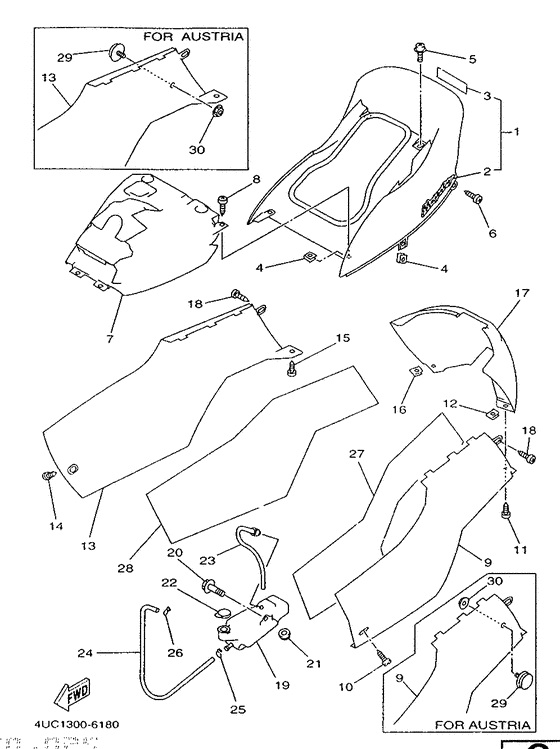

Side cover Diagram Yamaha YP250 Majesty
- Year
- 1996
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4UC1
- Sales region
- Spain (030)
- Engine Capacity
- 250
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4HC-Y2171-00-T9
Cover, Side 1
Ur comteition silver |
4HC-Y2171-00-T9 |
— | ||
| replacement | |||||
|
01
|
01
4HC-21711-00-T9
Cover, Side 1
Ur comteition silver |
4HC-21711-00-T9 |
— | ||
|
01
|
01
4HC-Y2171-10-4B Cover, Side 1Ur black 2 |
4HC-Y2171-10-4B |
US $629.64 |
||
| replacement | |||||
|
01
|
01
4HC-21711-00-PA Cover, Side 1Ur black 2 |
4HC-21711-00-PA |
US $629.64 |
||
|
01
|
01
4HC-Y2171-10-P0
Cover, Side 1
Ur deep red cocktail 2 |
4HC-Y2171-10-P0 |
— | ||
| replacement | |||||
|
01
|
01
4HC-21711-00-P0
Cover, Side 1
Ur deep red cocktail 2 |
4HC-21711-00-P0 |
— | ||
|
02
|
02
4HC-21781-00-00
Emblem 1
|
4HC-21781-00-00 |
— | ||
|
03
|
03
992-36000-80-00
Emblem, Yamaha
Ur for bl2,drc2 |
992-36000-80-00 |
— | ||
| replacement | |||||
|
03
|
03
992-46000-80-00 Emblem (YAMAHA)Ur for bl2,drc2 |
992-46000-80-00 |
from US $9.15 |
||
|
03
|
03
99237-00080-00 Emblem, YamahaUr for coms |
99237-00080-00 |
from US $7.90 |
||
| replacement | |||||
|
03
|
03
992-47000-80-00 Emblem, YamahaUr for coms |
992-47000-80-00 |
from US $7.76 |
||
|
04
|
04
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
05
|
05
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
06
|
06
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
07
|
07
4HC-21721-00-00
Cover, Side 2
|
4HC-21721-00-00 |
— | ||
|
08
|
08
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
09
|
09
4UD-2171L-10-00
Mole, Side Cover 1
Ur for bl2.drc2 |
4UD-2171L-10-00 |
— | ||
|
09
|
09
4HC-2171L-01-00
Mole, Side Cover 1
Ur for coms for aut |
4HC-2171L-01-00 |
— | ||
|
09
|
09
4HC-2171L-11-00
Mole, Side Cover 1
Ur for bl2.drc2 for aut |
4HC-2171L-11-00 |
— | ||
|
09
|
09
4UD-2171L-00-00
Mole, Side Cover 1
Ur for coms |
4UD-2171L-00-00 |
— | ||
|
10
|
10
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
11
|
11
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
13
|
13
4HC-2171M-01-00
Mole, Side Cover 2
Ur for coms |
4HC-2171M-01-00 |
— | ||
|
13
|
13
4HC-2171M-11-00
Mole, Side Cover 2
Ur for bl2.drc2 |
4HC-2171M-11-00 |
— | ||
|
13
|
13
4UD-2171M-00-00
Mole, Side Cover 2
Ur for coms for aut |
4UD-2171M-00-00 |
— | ||
|
13
|
13
4UD-2171M-10-00
Mole, Side Cover 2
Ur for bl2,drc2 for aut |
4UD-2171M-10-00 |
— | ||
|
14
|
14
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
15
|
15
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
16
|
16
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
17
|
17
4HC-2171N-00-00
Mole, Side Cover 3
Ur for coms |
4HC-2171N-00-00 |
— | ||
|
17
|
17
4HC-2171N-10-00
Mole, Side Cover 3
Ur for bl2,drc2 |
4HC-2171N-10-00 |
— | ||
|
18
|
18
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
19
|
19
4HC-21871-00-00
Tank, Recovery
|
4HC-21871-00-00 |
— | ||
|
20
|
20
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
20
|
20
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
21
|
21
90480-01288-00
Grommet
|
90480-01288-00 |
— | ||
|
22
|
22
1AA-21815-00-00 Cap |
1AA-21815-00-00 |
from US $6.40 |
||
|
23
|
23
4HC-21816-00-00
Pipe 1
|
4HC-21816-00-00 |
— | ||
|
24
|
24
4HC-21817-00-00 Pipe 2 |
4HC-21817-00-00 |
US $20.50 |
||
|
25
|
25
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
26
|
26
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
26
|
26
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
26
|
26
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
27
|
27
4HC-21778-01-00 Damper, Locating 1 |
4HC-21778-01-00 |
US $40.61 |
||
|
28
|
28
4HC-21779-01-00 Damper, Locating 2 |
4HC-21779-01-00 |
US $37.75 |
||
|
29
|
29
4AG-85111-00-00 Reflector, 1For aut |
4AG-85111-00-00 |
from US $9.98 |
||
|
30
|
30
95707-06500-00 Nut, FlangeFor aut |
95707-06500-00 |
from US $1.12 |
||
